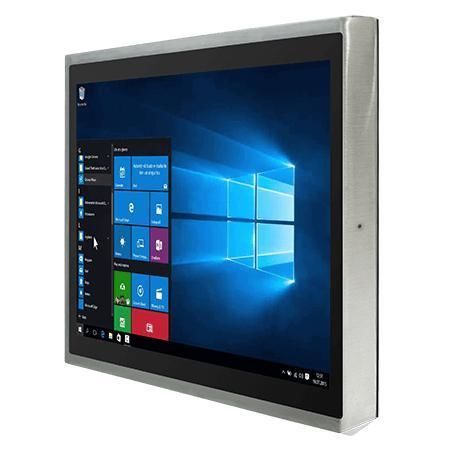

PCAP touchscreen panel PC R17IAD3S-SPM169

multi-touch screentouch screen17"

Overview
The Winmate R17IAD3S-SPM169 is a 17-inch industrial panel PC with a projected capacitive (P-CAP) multi-touch display and a SUS316 / AISI 316 stainless steel enclosure. It is designed for washdown, hygienic and corrosive environments where IP69K protection and easy cleaning are required.

Key features

• 17.0" 1280 x 1024 P-CAP multi-touch with true flat, edge-to-edge front
• Intel® Core™ i5-1235U (12th Gen) 3.3 GHz (turbo up to 4.40 GHz)
• SUS316 / AISI 316 stainless steel housing
• Full IP69K waterproof and dustproof enclosure
• Glove and rain touch modes supported
• Multiple waterproof I/O: M12 USB, M12 RS232, waterproof Gigabit RJ45
• Optional optical bonding; fanless thermal design
• VESA mount standard; Yoke mount optional

Certifications

• IP69K
• CE
• FCC

Applications
Suitable for food & beverage, pharmaceutical, chemical processing and other industrial environments requiring frequent high-pressure/high-temperature washdown and strict hygiene control.

Technical specifications

• Display: 17.0 inches, 1280 x 1024, 350 nits, 1000:1 contrast, viewing angles 85/85/80/80
• Touch / Glass: Projected Capacitive Multi-Touch (P-CAP); glove / rain modes; optical bonding optional
• Processor: Intel® Core™ i5-1235U (3.3 GHz; turbo up to 4.40 GHz)
• Memory: 8 GB default (options: 16 GB, 32 GB)
• Storage: 128 GB SSD default (options: 256/512 GB, 1 TB, 2 TB, 4 TB); 1 x SATA III for 2.5" drive (optional)
• Ethernet: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• Operating systems: Windows 11 IoT Enterprise 64-bit (opt), Windows 11 Pro 64-bit (opt), Ubuntu 22.04 (opt; Wake on Touch not supported)
• WLAN / Bluetooth: optional
• Dimensions: 412 x 344 x 61.3 mm
• Mounting: VESA standard; Yoke optional
• Enclosure: SUS316 / AISI 316 stainless steel
• Cooling: Fanless
• Operating humidity: 10%–90% RH (non-condensing)
• Operating temperature: 0°C to 45°C; storage: -20°C to 60°C
• IP rating: IP69K
• Model: R17IAD3S-SPM169
• Brand: Winmate

Connectivity & accessories

• 1 x M12 waterproof connector for 2 x USB2.0
• 1 x M12 waterproof connector for RS232
• 1 x waterproof Gigabit RJ45 connector
• LED indicators: power and storage
• Buttons: Power, Reset
• Included/optional accessories: 100–240V AC to DC adapter with waterproof connector, power cord, external waterproof USB/COM/LAN cables, waterproof caps, manual, VESA screws
• Power input: 12V DC (M12 type)
