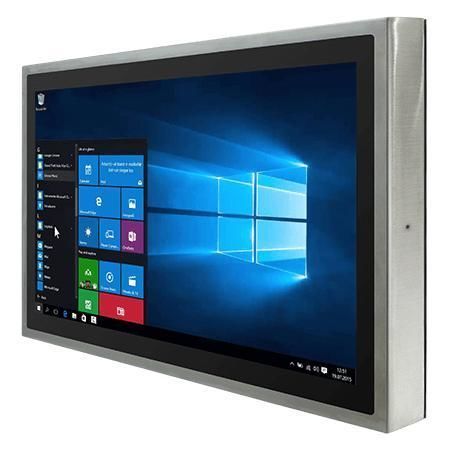

PCAP touchscreen panel PC W24IAD3S-SPA269

multitouch screen24"Intel® Core i5-1235U

Overview
24-inch stainless steel Panel PC W24IAD3S-SPA269 with 1920×1080 projected capacitive (P-CAP) touch, designed for food, beverage and chemical production environments. Full IP69K waterproof enclosure in SUS 316 / AISI 316 housing, edge-to-edge flat front for hygienic cleaning and glove/rain touch modes.

Key Features

• 24" 1920 x 1080 P-CAP multi-touch display with true flat design
• 12th Gen Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• SUS 316 / AISI 316 stainless steel enclosure for hygienic environments
• Full IP69K waterproof and dustproof rating
• Wide I/O: USB 2.0, RS232, RJ45 10/100/1000 (waterproof connectors)
• Waterproof ports with adapter cables for external connections
• Supports VESA and optional YOKE mounting
• Glove and Rain touch modes supported
• Optical bonding available (optional)

Certifications

• IP69K
• FCC
• CE

Product Details

• Waterproof All-Around: Fully compliant with IP69K for resistance to high-pressure, high-temperature washdowns and strict hygiene cleaning procedures.
• Comprehensive Stainless Solution: SUS 316 / AISI 316 construction suitable for food, beverage and chemical plant automation applications.
• P-CAP Multi-Touch: Projected capacitive touch with multi-touch gesture support and high touch sensitivity for reliable operator input, including Glove/Rain modes.

Technical Specifications

• Display Size: 24.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (P-CAP)
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89/89/89/89
• Active Area: 527.04 x 296.46 mm
• Processor: Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz)
• Memory: 8GB (Default); 16GB / 32GB (Optional)
• Storage: 128GB SSD (Default); optional 256GB / 512GB / 1TB / 2TB / 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
• Ethernet Controller: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• Operating Systems (optional): Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Ubuntu 22.04 (note: Wake on Touch not supported)
• WLAN / Bluetooth: Optional support
• Mechanical Dimensions: 620 x 390 x 56 mm
• Mounting: VESA mount (Default); Yoke mount (Optional)
• Enclosure: Stainless housing (SUS 316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP Rating: IP69K (full waterproof and dustproof)
• IO Ports: 1 x M12 waterproof connector for 2 x USB 2.0; 1 x M12 waterproof connector for RS232; 1 x waterproof Giga LAN RJ45 connector; LEDs: power and storage
• Control Buttons: Power, Reset
• Accessories: 100~240V AC to DC adapter with waterproof connector; power cord; external USB/COM/LAN cables with waterproof connectors; waterproof caps; manual; VESA screws
• Power Rating: 12V DC (M12)
