PCAP touchscreen panel PC W22IT3S-SPA369

multitouch screen21.5"Intel® Core™ i5-1135G7

Overview

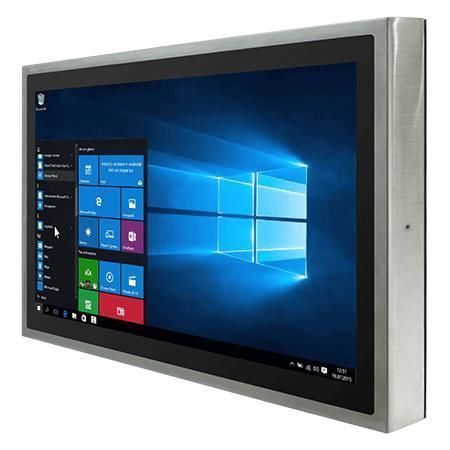

The W22IT3S-SPA369 is a 21.5" flat stainless steel projected capacitive (P-CAP) panel PC equipped with an 11th Generation Intel® Core™ i5-1135G7 processor. It is engineered for hygienic and harsh production environments, offering a full SUS 316 (AISI 316) stainless enclosure with a true flat, edge-to-edge front for simplified cleaning and washdown resistance.

Key Features

• 21.5" 1920 x 1080 display with P-CAP multi-touch and flat front
• Intel® Core™ i5-1135G7 (2.4GHz, up to 4.2GHz)
• SUS 316 / AISI 316 stainless steel housing for food, beverage and chemical industries
• Full IP69K waterproof enclosure for high-pressure, high-temperature washdowns
• Glove and rain touch modes for adverse conditions
• Multiple waterproof I/Os: M12 USB 2.0, M12 RS232, waterproof RJ45 Giga LAN
• Waterproof ports supplied with adapter cables for external connectivity
• VESA mount (standard) and optional YOKE mount
• Optional optical bonding

Certifications

• IP69K
• CE
• FCC

Waterproof performance
The unit fully complies with IP69K for protection against high-pressure, high-temperature washdowns, meeting strict hygiene and cleaning processes used in food, beverage and pharmaceutical production.

Stainless solution for industrial automation
A complete stainless HMI and panel PC solution designed for corrosion resistance and hygienic operation in food, beverage and chemical factory automation.

Projected Capacitive Multi-Touch (P-CAP)
High-sensitivity multi-touch P-CAP screen supports gestures and multi-finger input, with reliable operation in glove or wet conditions.

Technical specifications

• Display: 21.5 inches; Projected Capacitive Multi Touch Screen; Resolution 1920 x 1080; Panel Brightness 250 nits; Contrast Ratio 3000:1; View Angles 89/89/89/89; Active Area 476.64 x 268.11 mm
• Processor: Intel® Core™ i5-1135G7 2.4GHz (up to 4.2GHz)
• Memory: 4GB (default); optional 8GB, 16GB, 32GB
• Storage: 128GB SSD (default); optional 256GB, 512GB, 1TB, 2TB, 4TB; optional 1 x SATA III for 2.5" SSD/HDD up to 2TB
• Ethernet controller: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• Operating system (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro (64-bit); Linux Ubuntu 22.04 (does not support Wake on Touch)
• WLAN / BT: Support (optional)
• Mechanical: Dimension 541 x 337 x 56.2 mm; Mounting VESA (default), Yoke (optional); Enclosure Stainless housing (SUS 316 / AISI 316); Cooling Fanless design
• Environment: Operating Humidity 10% to 90% RH non-condensing; Operating Temperature 0°C to 45°C; Storage Temperature -20°C to 60°C; IP rating IP69K
• Certifications: CE, FCC, IP69K
• I/O Ports: 1 x M12 waterproof connector for 2 x USB2.0; 1 x M12 waterproof connector for RS232; 1 x Waterproof Giga LAN RJ45 connector; Indicators: 1 x LED for power, 1 x LED for storage
• Control: 1 x Power Button; 1 x Reset Button
• Accessories: 100~240V AC to DC adapter with waterproof connector; power cord; external USB cable with waterproof connector; external COM cable with waterproof connector; external LAN cable with waterproof connector; waterproof caps; manual; VESA screws
• Power: 12V DC (M12 type)
