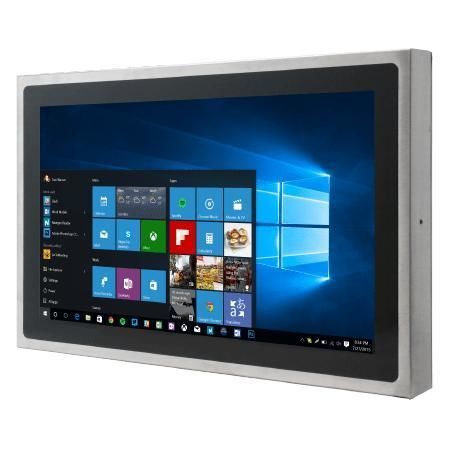

LCD panel PC W24IB3S-SPA269

PCAP touchscreenmultitouch screen24"

Overview
The W24IB3S-SPA269 is a 24" stainless steel chassis Panel PC featuring an Intel® Celeron® N2930 processor and a projected capacitive (P-CAP) multi-touch display. Designed for hygiene-sensitive environments, it offers a true flat, edge-to-edge front surface, SUS 316 / AISI 316 stainless steel enclosure and a full IP69K waterproof rating suitable for food, beverage and chemical industries.

Key Features

• 24", 1920 x 1080 resolution P-CAP touch with flat design
• Intel® Celeron® Bay Trail-M N2930, 1.83 GHz (up to 2.16 GHz)
• SUS 316 / AISI 316 stainless steel for food and chemical industries
• Full IP69K waterproof enclosure
• True flat, easy-to-clean front surface with edge-to-edge design
• Plenty of I/Os including USB 2.0, RS232 and RJ45 10/100/1000 LAN
• Waterproof ports with adapter cables for external connectivity
• Support for VESA and optional YOKE mount
• Support Glove and Rain touch modes
• Optional optical bonding

Certifications

• IP69K
• CE
• FCC

Product Highlights

• Waterproof All-Around: Fully complies with IP69K water and dust resistance to survive splashing conditions and stringent cleanup processes.
• Comprehensive Stainless Solution: Designed for automation processes in Food & Beverage and chemical factories.
• Projected Capacitive Multi-Touch (P-CAP): Highly sensitive multi-touch that supports gestures like rotate, drag-and-drop and multi-finger zoom.

Display

• Size: 24.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89/89/89/89
• Active Area: 527.04 x 296.46 mm

System Specification

• Processor: Intel® Celeron® N2930 1.83 GHz (up to 2.16 GHz)
• Memory: 4GB (default) DDR3L SO-DIMM; 8GB optional
• Storage: 128GB SSD (default); 256GB and 512GB SSD optional (mSATA / mSATA up to 512GB noted in some references)
• Ethernet Controller: 2 x Intel® Ethernet Controller (I210/I210-AT)
• Operating System: Windows 10 IoT Enterprise (64-bit) optional; Linux Ubuntu options noted
• WLAN / BT: Optional support

Mechanical

• Dimensions: 620 x 390 x 56 mm
• Mounting: VESA mount (default); Yoke mount optional
• Enclosure: Stainless housing (SUS 316 / AISI 316)
• Cooling System: Fanless design

Environment

• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP Rating: IP69K

IO Ports

• USB: 1 x M12 waterproof connector for 2 x USB 2.0
• Serial: 1 x M12 waterproof connector for RS232
• LAN: 1 x waterproof Giga LAN RJ45 connector
• Indicators: 1 x LED for power; 1 x LED for storage

Control & Buttons

• 1 x Power Button
• 1 x Reset Button

Accessory (included / optional)

• 100~240V AC to DC Adapter with waterproof connector
• Power cord
• External USB cable with waterproof connector
• External COM cable with waterproof connector
• External LAN cable with waterproof connector
• Waterproof caps
• Manual and driver resources
• VESA screws

Power

• Power Input: 1 x M12 waterproof connector for 12V DC
• Power Rating: 12V DC (M12 type)

Notes

• Designed for food, beverage and pharmaceutical hygiene-sensitive environments with easy-to-clean true-flat front surface and full IP69K protection.
• Optional features and configurations (memory, storage, OS, wireless) available.

Caractéristiques / Spécifications Techniques

• Model: W24IB3S-SPA269
• Brand: Winmate
• Display: 24", 1920x1080, P-CAP multi-touch, 250 nits
• CPU: Intel® Celeron® N2930 (1.83 GHz, up to 2.16 GHz)
• Memory: 4GB (default), up to 8GB optional
• Storage: 128GB SSD default; up to 512GB optional
• Networking: 2 x Intel Ethernet controllers; 1 x waterproof Giga LAN RJ45
• I/O: M12 waterproof connectors for USB and RS232
• Enclosure: SUS 316 / AISI 316 stainless steel
• Mounting: VESA (default), Yoke optional
• Ingress Protection: IP69K
• Operating Temp/Humidity: 0°C to 45°C; 10%–90% RH non-condensing
• Power: 12V DC via M12 connector
• Certification: CE, FCC
