PCAP touchscreen panel PC R15IE3S-SPC369

multitouch screen15"Intel® Atom x6413E

Overview

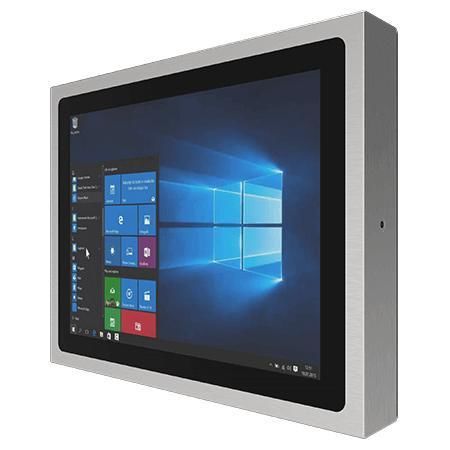

The R15IE3S-SPC369 is a 15" flat stainless steel Panel PC with IP69K rating and projected capacitive (P-CAP) multi-touch, designed for hygienic and industrial environments such as food, beverage and chemical production where high-pressure cleaning and corrosion resistance are required.

Key Features

• 15" display, 1024 x 768 resolution, P-CAP multi-touch with true flat front
• Intel Atom® x6413E processor (up to 3.0 GHz)
• SUS 316 / AISI 316 stainless steel housing for food and chemical environments
• IP69K fully waterproof enclosure
• Edge-to-edge flat front surface for easy cleaning
• Multiple I/Os: USB 2.0, RS232, RJ45 (10/100/1000)
• Waterproof ports with adapter cables for external connectivity
• VESA mount (standard); Yoke mount (optional)
• Glove and Rain modes supported
• Optical bonding available (optional)

Certifications

• IP69K
• FCC
• CE

Product Details

• Model designation: R15IE3S-SPC369
• Product family: 15" IP69K Flat Stainless P-CAP Panel PC

Technical Specifications

• Display: 15.0 inches, 1024 x 768, Projected Capacitive Multi Touch, panel brightness 300 nits, contrast ratio 2000:1, view angles 88/88/88/88, active area 304.1 x 228.1 mm
• Processor: Intel Atom® x6413E (up to 3.0 GHz)
• Memory: 4 GB (default); optional 8 GB, 16 GB
• Storage: 128 GB SSD (default); optional 256 GB, 512 GB, 1 TB, 2 TB SSD
• Ethernet: 1 x Intel® Ethernet Controller; WLAN and Bluetooth support (optional)
• Operating systems (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 22.04
• Dimensions: 378 x 301 x 56.4 mm; Weight: 7.5 kg
• Mounting: VESA mount (default); Yoke mount (optional)
• Enclosure: SUS 316 / AISI 316 stainless steel; Cooling: fanless design
• Operating conditions: Humidity 10%–90% RH non-condensing; Operating temperature 0°C–45°C; Storage temperature -20°C–60°C
• IP rating: IP69K
• I/O ports: 1 x M12 waterproof connector for 2 x USB2.0; 1 x M12 waterproof connector for RS232; 1 x waterproof Gigabit LAN RJ45 connector
• Indicators & controls: 1 x power LED; 1 x storage LED; 1 x power button; 1 x reset button
• Accessories: 100~240V AC to DC adapter with waterproof connector; power cord; external USB/COM/LAN cables with waterproof connectors; waterproof caps; manual; VESA screws
• Power rating: 12V DC (M12 type)
