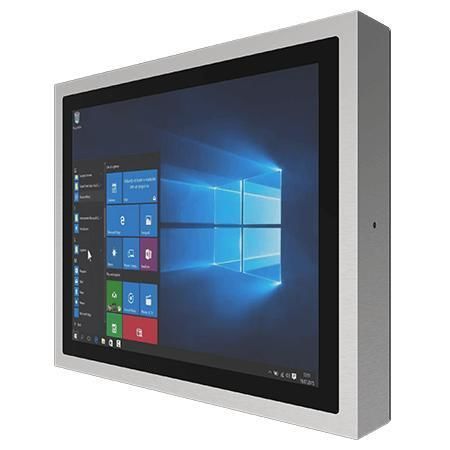

PCAP touchscreen panel PC R19IE3S-SPM169

multitouch screen19"Intel® Atom x6413E

Short description
The R19IE3S-SPM169 is a 19-inch flat stainless steel Panel PC with projected capacitive (P‑Cap) multi-touch, sealed to IP69K for high-temperature, high-pressure washdown environments. Designed for food, beverage, pharmaceutical and chemical applications where hygiene and washability are critical.

Key features

• Intel Atom® x6413E (Elkhart Lake) processor
• SUS316 / AISI 316 stainless steel housing suitable for food and chemical industries
• IP69K sealed front for protection against water ingress and dust
• True flat, edge‑to‑edge front surface for easy cleaning
• Projected capacitive multi‑touch (P‑Cap) with Glove and Rain modes
• Various mounting options: VESA (default) and Yoke mount (optional)
• Waterproof I/O: M12 USB, M12 RS232, waterproof RJ45 Gigabit LAN
• Optional optical bonding and configurable memory/storage

Certifications

• IP69K
• CE
• FCC

Overview

• Washdown ready — Fully complies with IP69K to withstand high‑pressure, high‑temperature cleaning used in strict hygiene regimes.
• Stainless solution — SUS316 enclosure and sealed connectors reduce contamination risk and enable use in food, beverage and chemical production lines.
• P‑Cap multi‑touch — High‑sensitivity projected capacitive touch supports gestures (rotate, drag‑and‑drop, pinch‑to‑zoom) and works with gloves or wet surfaces.

Technical specifications

• Model: R19IE3S-SPM169
• Brand: Winmate
• Display: 19.0 inch; Projected Capacitive Multi Touch; 1280 x 1024; 250 nits; 1000:1 contrast; Active area 376.32 x 301.06 mm; Viewing angles 85/85/80/80.
• System: Processor Intel Atom® x6413E (up to 3.0 GHz); Memory 4 GB (default), optional 8 GB/16 GB; Storage 128 GB SSD (default), optional 256/512 GB/1 TB/2 TB; Ethernet controller Intel; Optional OS: Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise, Linux Ubuntu 22.04; optional WLAN/BT.
• Mechanical: Dimensions 468 x 395 x 57 mm; Mounting VESA (default) or Yoke (optional); Enclosure SUS316 stainless; Fanless cooling.
• Environment: Operating humidity 10%–90% RH non‑condensing; Operating temperature 0°C to 45°C; Storage temperature -20°C to 60°C; IP69K.
• IO Ports: 1x M12 waterproof connector for 2x USB2.0; 1x M12 waterproof RS232; 1x waterproof Gigabit RJ45; LED indicators for power and storage.
• Control: 1x Power button; 1x Reset button.
• Accessory: 100–240V AC to 12V DC adapter with waterproof connector, power cord, external USB/COM/LAN adapter cables with waterproof connectors, waterproof caps, manual, VESA screws.
• Power: 12V DC (M12 type).
