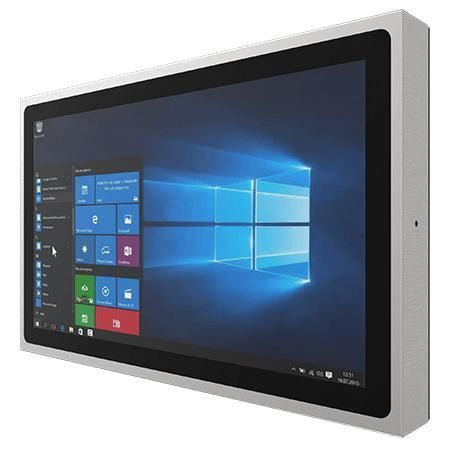

PCAP touchscreen panel PC W22IE3S-SPA369

multi-touch screen21.5"Intel® Atom x6413E

Overview
The W22IE3S-SPA369 is a 21.5-inch IP69K flat stainless PCAP chassis panel PC designed for harsh, hygienic environments. It features a true flat, easy-to-clean front surface with edge-to-edge design and a SUS 316 / AISI 316 stainless steel enclosure suitable for food, beverage and chemical industries.

Highlights

• Waterproof all-around: full IP69K water and dust resistance for stringent cleanup processes and strict hygiene demands.
• Comprehensive stainless solution: stainless HMI and Panel PC family for automation in Food & Beverage and chemical factories.
• Projected Capacitive Multi-Touch (P-CAP): highly sensitive multi-touch support with Glove/Rain mode.

Key Features

• 21.5", 1920 x 1080, P-cap touch with flat design
• Intel Atom® x6413E Elkhart Lake processor (up to 3.0 GHz)
• SUS 316 / AISI 316 stainless steel housing for hygienic environments
• Full IP69K waterproof enclosure
• True flat, easy-to-clean front surface (edge-to-edge)
• Multiple I/Os including USB 2.0, RS232 and RJ45 10/100/1000 LAN via waterproof connectors
• Waterproof ports with adapter cables for external connectivity
• Support for VESA mount; YOKE mount optional
• Support for Glove / Rain mode for touchscreen operation
• Optical bonding available as an option

Certifications

• IP69K
• FCC
• CE

Technical Specifications

• Display: 21.5 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel Brightness: 250.0 nits
• Contrast Ratio: 3000:1
• View Angles: 89, 89, 89, 89
• Active Area: 476.64 x 268.11 mm
• Processor: Intel Atom® x6413E (up to 3.0 GHz)
• Memory: 4 GB (Default); 8 GB (Optional); 16 GB (Optional)
• Storage: 128 GB SSD (Default); 256 GB / 512 GB / 1 TB / 2 TB SSD options
• Ethernet Controller: 1 x Intel® Ethernet Controller
• Operating System (optional): Windows 11 IoT Enterprise (64 bit); Windows 11 Pro 64 bit; Windows 10 IoT Enterprise (64 bit); Linux Ubuntu 22.04
• WLAN: Support (Optional)
• Bluetooth: Support (Optional)
• Dimension: 541 x 337 x 56.2 mm
• Mounting: VESA mount (Default); Yoke mount (Optional)
• Enclosure: Stainless housing (SUS 316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP Rating: IP69K
• Certifications: CE, FCC
• IO Ports: 1 x M12 waterproof connector for 2 x USB2.0; 1 x M12 waterproof connector for RS232; 1 x waterproof Giga LAN RJ45 connector
• Indicator: 1 x LED for power; 1 x LED for storage
• Control Buttons: 1 x Power Button; 1 x Reset Button
• Accessory (included / available): 100~240V AC to DC adapter with waterproof connector; power cord; external USB/COM/LAN cables with waterproof connectors; waterproof caps; manual; VESA screws
• Power Rating: 12V DC (M12 type)
