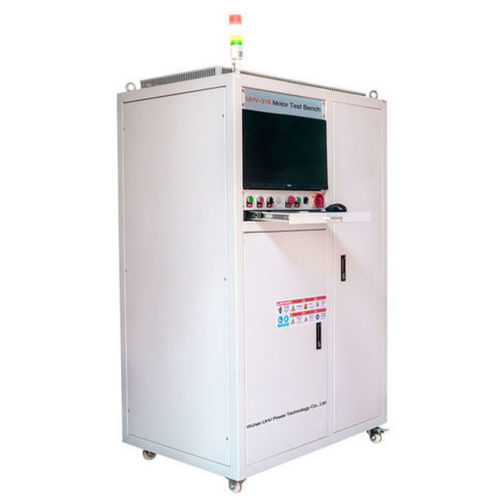

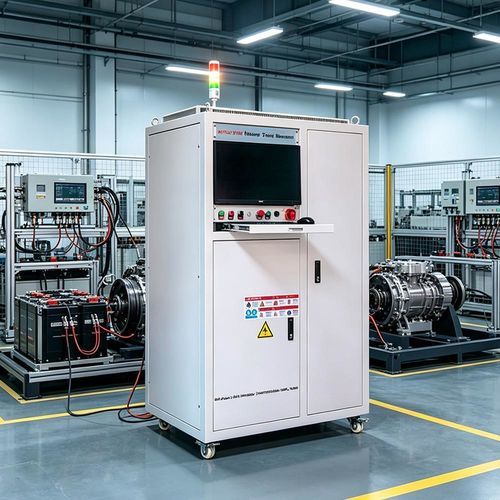

Motor test bench UHV-316

dynamometerresistanceperformance

Product Introduction:

• This bench is designed for automated factory electrical testing of three-phase asynchronous motors (squirrel-cage and wound-rotor) and DC motors. It verifies product compliance with control and quality standards by running standardized electrical tests and automated test sequences. The system is intended for high-throughput end-of-line, incoming inspection and production-line quality control.

Product Parameter

• Scope of application

Low voltage motor - 110V/220V/380V/440V/460V/480V/600V: power range 0.37kW~746kW; (test frequency 50Hz/60Hz)
DC Motor - Armature voltage: DC 10-800V, current: 1~ 100A
- Excitation voltage: DC10-300V, current: 1~ 50A

• Measurement parameters range and precision

Test item Test range Accuracy Description
Temperature -40-150℃ ±1℃ Environmental temperature measurement
DC resistance 0.012000Ω 0.2% Range divided into 6 levels, with automatic temperature compensation
Insulation resistance DC 500V/1500MΩ 0.5% Automatic deduction of background
Inter-turn testing 4003000Vp 0.5% Wavefront time: 0.2uS, automatic judgment of adjacent turns between 1/200 turns
Power frequency withstand voltage test Withstand voltage AC 4003000V 0.2%
Leakage current 1500mA 0.2%
Current measuring DC voltage DC 50-800V 0.5%
DC current DC 1-100A 0.5%

Main Functions / Test Items:

• DC resistance measurement
• Insulation resistance measurement
• Inter-turn (winding) insulation detection
• Power-frequency voltage withstand (dielectric) test
• No-load and load characteristic measurements (motor performance curves)
• Frequency-doubling induction test
• Transformer no-load and load characteristic tests (where applicable)
• Automated start/stop sequences, pass/fail evaluation and traceable data logging

Applications:

• Automated production-line electrical testing for motor manufacturers
• End-of-line testing and batch quality control
• Incoming inspection for motor components and subassemblies
• Factory acceptance testing and standardized compliance verification

Documentation / Options:

• User manual and setup guide
• Calibration certificate and test report templates
• PLC / network integration and data export (CSV/SQL)
• Custom fixtures, safety interlocks and additional test modules on request

Technical characteristics / Specifications:

• Model: UHV-316
• Designed for automated factory electrical testing of motors
• Supported motor types: three-phase asynchronous (squirrel-cage and wound-rotor) and DC motors
• Key test items: DC resistance, insulation resistance, inter-turn insulation, power-frequency withstand, no-load/load characteristics, frequency-doubling induction
• Integration: automated sequences, data acquisition and reporting for production control
• Use: end-of-line testing, incoming inspection, production quality control
