- Zhejiang Xinli Electric Technology Co., Ltd.

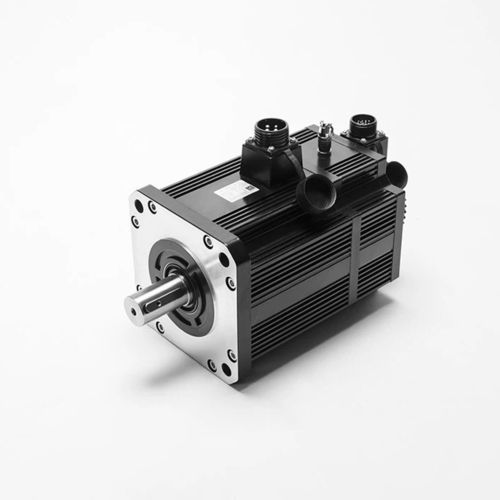

AC servo motor 180ST-M21520220 V380 Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- Type
- AC
- Voltage
- 220 V, 380 V
- Configuration
- permanent magnet
- Protection class
- IP65
- Number of poles
- 2-pole
- Applications
- for machine tools, for medical equipment
- Other characteristics
- high-performance, controller
- Power
4.5 kW
(6.12 hp)- Intensity
9.5 A, 16 A
- Torque
21.5 Nm
(15.857586 ft.lb)- Rotational speed
2,000 rpm
(12,566.3706 rad.min-1)- Diameter
180 mm
(7.09 in)
Description
Servo motor refers to the engine that controls the operation of mechanical components in the servo system, which is a subsidy motor indirect speed change device.
The high-performance electric servo system mostly adopts the permanent magnet synchronous AC servo motor, and the control driver mostly adopts the full digital position servo system with fast and accurate positioning.
No rotation phenomenon, the normal operation of the servo motor once lost the control voltage, the motor immediately stop running.
Medical industry: monitor, CT control box, B-mode ultrasound machine, electrocardiogram (electroencephalogram) tester, hemodialysis machine, X-ray machine, slicer, temperature controller, etc.
