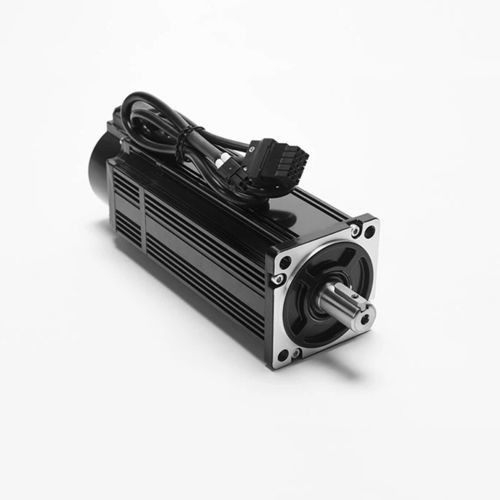

AC servo motor 80ST-M0 series
220 VsmallIP65

AC servo motor - 80ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / small / IP65
AC servo motor - 80ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / small / IP65
AC servo motor - 80ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / small / IP65 - image - 2
AC servo motor - 80ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / small / IP65 - image - 3
AC servo motor - 80ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / small / IP65 - image - 4
AC servo motor - 80ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / small / IP65 - image - 5
AC servo motor - 80ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / small / IP65 - image - 6
Add to favorites
Compare this product

Characteristics

Type
AC
Voltage
220 V
Configuration
small
Protection class
IP65
Number of poles
2-pole
Applications
for robotics, for machine tools, packaging machine
Other characteristics
performance, high-speed
Power

0.4 kW, 0.73 kW, 0.75 kW, 1 kW
(0.54 hp, 0.99 hp, 1.02 hp, 1.36 hp)

Intensity

2 A, 3 A, 4.4 A

Torque

1.27 Nm, 2.39 Nm, 3.5 Nm, 4 Nm
(0.936704 ft.lb, 1.762774 ft.lb, 2.581468 ft.lb, 2.950249 ft.lb)

Rotational speed

2,000 rpm, 2,500 rpm, 3,000 rpm
(12,566.3706 rad.min-1, 15,707.9633 rad.min-1, 18,849.5559 rad.min-1)

Diameter

80 mm
(3.15 in)

Description

Servo motor is an accurate industrial control actuator, which is mainly composed of motion motor, driver and encoder. Among them, the motor motor is the main body and core of the whole servo system. Servo Motor is defined by its high torque capability, which allows it to deliver precise and accurate movements in a variety of scenarios. The motor has been engineered to deliver consistent performance even in demanding environments, ensuring reliable and consistent operation. One of the key advantages of this motor is its versatility. The flange makes it compatible with a wide range of different machinery and equipment, while the speed rating means that it can be used in high-speed applications with ease. The torque rating of the motor ensures that it can handle even heavy loads with ease, providing excellent control and accuracy in all scenarios. Servo Motor is ideally suited to a range of different industrial applications, including robotics, manufacturing, automation, and packaging. The motor is capable of delivering precise and accurate movements in complex and demanding environments, making it an ideal choice for a wide range of applications.
