- Zhejiang Xinli Electric Technology Co., Ltd.

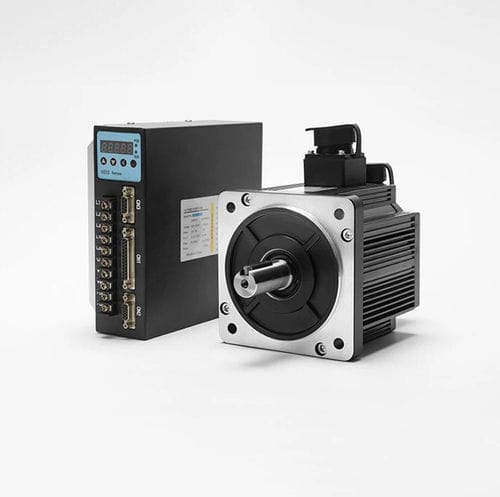

AC servo motor 180ST-M series220 V380 Vsmall
Add to favorites
Compare this product
Characteristics
- Type
- AC
- Voltage
- 220 V, 380 V
- Configuration
- small, large
- Protection class
- IP65
- Number of poles
- 4-pole
- Applications
- for machine tools, for medical equipment
- Other characteristics
- controller
- Power
Min.: 2.7 kW
(3.67 hp)Max.: 5.5 kW
(7.48 hp)- Intensity
Min.: 6.5 A
Max.: 24 A
- Torque
17.2 Nm, 19 Nm, 21.5 Nm, 27 Nm, 35 Nm
(12.686069 ft.lb, 14.013681 ft.lb, 15.857586 ft.lb, 19.914178 ft.lb, 25.814675 ft.lb)- Rotational speed
1,500 rpm
(9,424.778 rad.min-1)
Description
Industrial robot control system and automation products mainly involve AC servo motor, reducer, controller and sensors. Servo motor is the power system of industrial robots, which is generally installed in the "joint" of the robot, which is the "heart" of the robot movement.
Fast reaction speed, the AC servo motor must have a small moment of inertia, a large torque, as small as possible electromechanical time constant and a large acceleration (more than 400 rad/s2).
Medical industry: monitor, CT control box, B-mode ultrasound machine, electrocardiogram (electroencephalogram) tester, hemodialysis machine, X-ray machine, slicer, temperature controller, etc.
