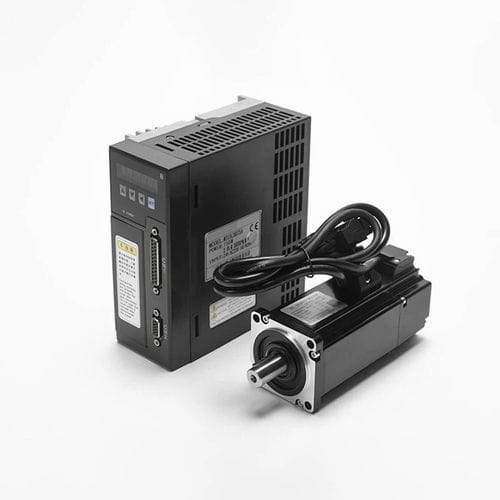

DC servo motor 80ST-M0243048 VsmallIP64
Add to favorites
Compare this product
Characteristics
- Type
- DC
- Voltage
- 48 V
- Configuration
- small
- Protection class
- IP64
- Number of poles
- 4-pole, 2-pole
- Applications
- for machine tools, spindle
- Other characteristics
- emergency
- Power
Max.: 3,000 W
(4.08 hp)Min.: 750 W
(1.02 hp)- Intensity
Max.: 88 A
Min.: 19.5 A
- Torque
Max.: 10 Nm
(7.375621 ft.lb)Min.: 2.39 Nm
(1.762774 ft.lb)- Rotational speed
1,500 rpm, 2,000 rpm, 2,500 rpm, 3,000 rpm
(9,424.778 rad.min-1, 12,566.3706 rad.min-1, 15,707.9633 rad.min-1, 18,849.5559 rad.min-1)
Description
Servo motor usually has the braking function. Generally braking refers to the back end of the servo motor, servo motor brake installed in the back end of the motor, working through the brake pad acting on the main shaft of the motor, the motor brake and hold the motor spindle.
And the electromagnetic mechanical lock device generally plays an emergency protection role, such as a sudden power failure during operation, the driver can not provide the braking function, the servo motor brake will play a role, lock the motor shaft to avoid accidents.
