AC servo motor 60ST-M0 series
220 VsmallIP65

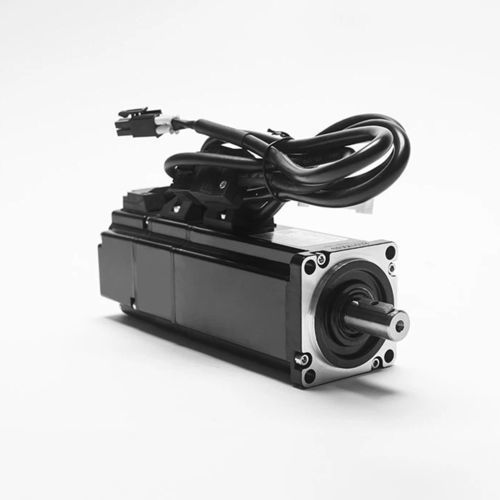

AC servo motor - 60ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / small / IP65
AC servo motor - 60ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / small / IP65
AC servo motor - 60ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / small / IP65 - image - 2
AC servo motor - 60ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / small / IP65 - image - 3
AC servo motor - 60ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / small / IP65 - image - 4
AC servo motor - 60ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / small / IP65 - image - 5
AC servo motor - 60ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / small / IP65 - image - 6
Add to favorites
Compare this product
Go to the Zhejiang Xinli Electric Technology Co., Ltd. website for more information

Characteristics

Type
AC
Voltage
220 V
Configuration
small
Protection class
IP65
Number of poles
2-pole
Applications
for machine tools
Other characteristics
precision
Power

0.2 kW, 0.4 kW, 0.6 kW
(0.27 hp, 0.54 hp, 0.82 hp)

Intensity

1.2 A, 2.8 A, 3.5 A

Torque

0.637 Nm
(0.469827 ft.lb)

Rotational speed

3,000 rpm
(18,849.5559 rad.min-1)

Diameter

60 mm
(2.36 in)

Description

servo motor is an accurate industrial control actuator, which is mainly composed of motion motor, driver and encoder. Among them, the motor motor is the main body and core of the whole servo system. No rotation phenomenon, the normal operation of the servo motor once lost the control voltage, the motor immediately stop running. Servo motor is widely used in ATM machine, inkjet drawing machine, lettering machine, font writer, photo machine, spraying equipment,148medical instruments and Equipment, computer peripherals and massive storage equipment, precision instruments, industrial control systems, office automation, robots and other fields.
