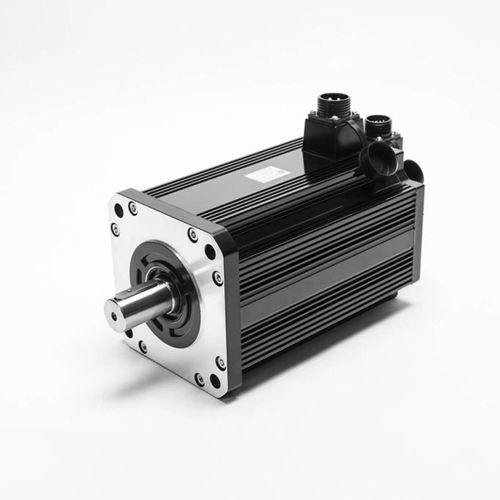

AC servo motor 110A6ST-M0 series220 Vlargesmall
Add to favorites
Compare this product
Characteristics
- Type
- AC
- Voltage
- 220 V
- Configuration
- small, large
- Protection class
- IP65
- Number of poles
- 2-pole
- Applications
- for machine tools
- Other characteristics
- performance, motor design
- Power
0.88 kW, 1.1 kW, 1.3 kW, 1.6 kW
(1.2 hp, 1.5 hp, 1.77 hp, 2.18 hp)- Intensity
4.6 A, 5.9 A, 7 A, 8.6 A
- Torque
4.2 Nm, 5.4 Nm, 6.4 Nm, 7.5 Nm
(3.097761 ft.lb, 3.982836 ft.lb, 4.720398 ft.lb, 5.531716 ft.lb)- Rotational speed
2,000 rpm
(12,566.3706 rad.min-1)- Diameter
110 mm
(4.33 in)
Description
Servo motor should be designed to fit the characteristics of the servo system: fast, accurate and stable. So the servo motor design key points: light weight, large output, fast response, high speed, small inertia, smooth rotation, stable torque and so on.
Benefiting from the higher integration degree, the performance of the servo motor has no smaller volumes, and it is even more powerful than the conventional motors.
servo motor is widely used in the computer embroidery machine and other textile machinery and equipment.
