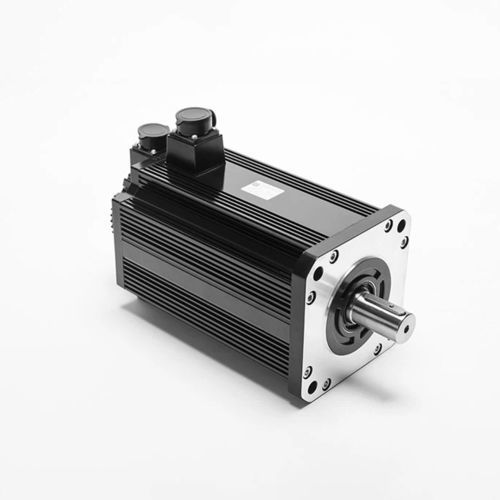

AC servo motor 80ST-M0 series220 VlargeIP65
Add to favorites
Compare this product
Characteristics
- Type
- AC
- Voltage
- 220 V
- Configuration
- large
- Protection class
- IP65, waterproof
- Number of poles
- 2-pole
- Applications
- for machine tools
- Other characteristics
- high-precision, low-noise
- Power
0.4 kW, 0.73 kW, 0.75 kW, 1 kW
(0.54 hp, 0.99 hp, 1.02 hp, 1.36 hp)- Intensity
2 A, 3 A, 4 A, 4.4 A
- Torque
1.27 Nm, 2.39 Nm, 2.4 Nm, 3.5 Nm, 4 Nm
(0.936704 ft.lb, 1.762774 ft.lb, 1.770149 ft.lb, 2.581468 ft.lb, 2.950249 ft.lb)- Rotational speed
2,000 rpm, 2,500 rpm, 3,000 rpm
(12,566.3706 rad.min-1, 15,707.9633 rad.min-1, 18,849.5559 rad.min-1)
Description
servo motor is divided into PI65 DC servo motor and IP65 AC servo motor. The DC servo motor is divided into brushless motor and brush motor, and the IP65 AC servo motor is brushless motor, so it is divided into synchronous motor and asynchronous motor.
(1）IP65 waterproof rating. (2) High temperature and low temperature resistance . (3) Large torque Low noise. (4) High accuracy and strong stability
IP65 AC servo motor especially suitable for applications requiring smooth operation, low noise, fast response, long service life and high output torque.
