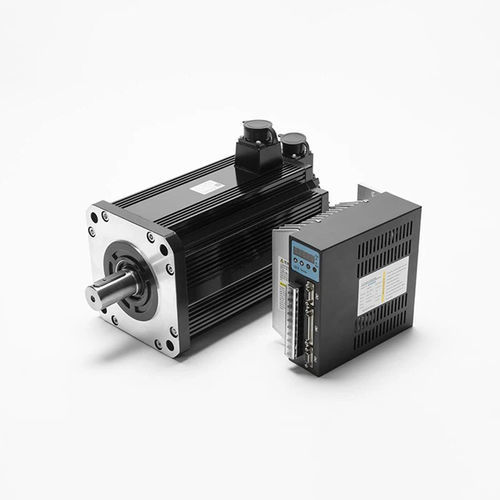

Brushless servo motor 80ST-M0243048 VsmallIP64
Add to favorites
Compare this product
Characteristics
- Type
- brushless
- Voltage
- 48 V
- Configuration
- small
- Protection class
- IP64
- Number of poles
- 2-pole
- Applications
- for machine tools
- Power
750 W, 1,000 W, 1,500 W
(1.02 hp, 1.36 hp, 2.04 hp)- Intensity
19.5 A, 27 A, 35 A
- Torque
2.39 Nm, 4 Nm, 5 Nm
(1.762774 ft.lb, 2.950249 ft.lb, 3.687811 ft.lb)- Rotational speed
2,500 rpm, 3,000 rpm
(15,707.9633 rad.min-1, 18,849.5559 rad.min-1)
Description
Servo motor encoder is installed on the servo motor is used to measure the pole position and servo motor Angle and speed of a sensor, from the different physical media, servo motor encoder can be divided into photoelectric and photoelectric encoder.
The brushless servo motor can accurately achieve displacement control is mainly because of the encoder. The encoder can check the pulse between the drive and the motor motor, and if so, allowing the motor to work strictly in accordance with the PLC instructions, whether it is displacement movement, torque change, or speed change.
