- Zhejiang Xinli Electric Technology Co., Ltd.

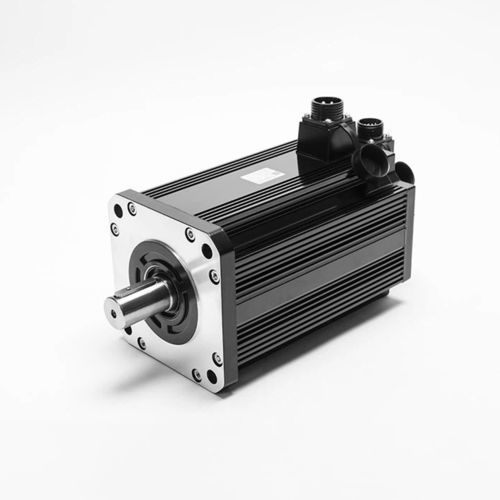

AC servo motor 80A6ST-M0 series220 VsmallIP65
Add to favorites
Compare this product
Characteristics
- Type
- AC
- Voltage
- 220 V
- Configuration
- small
- Protection class
- IP65
- Number of poles
- 2-pole
- Applications
- for robotics, for machine tools
- Other characteristics
- high-precision, precision, closed-loop
- Power
0.4 kW, 0.75 kW, 1 kW, 1.2 kW
(0.54 hp, 1.02 hp, 1.36 hp, 1.63 hp)- Intensity
2.7 A, 5 A, 5.4 A, 6.7 A
- Torque
1.27 Nm, 2.39 Nm, 3.3 Nm, 4 Nm
(0.936704 ft.lb, 1.762774 ft.lb, 2.433955 ft.lb, 2.950249 ft.lb)- Rotational speed
3,000 rpm
(18,849.5559 rad.min-1)
Description
High precision servo motor can be understood as a motor that absolutely follows the control signal command: therotor is still before the control signal is sent; the rotor rotates immediately when the control signal is sent;and the rotor can stop immediately when the control signal disappears.
Precision: Servo motor realize the closed-loop control of position, speed and torque; overcome the problem of stepping motor.
The joint drive of the robot cannot be separated from the servo system. The more joints, the higher the flexibility and accuracy of the robot, and the more servo motors that need to be used.
