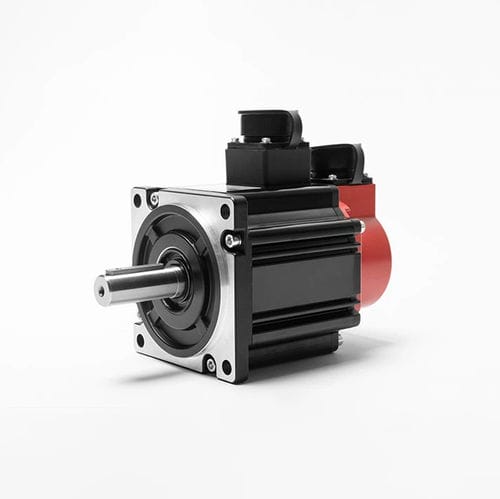

AC servo motor 110A6ST-M0 series
220 Vcompactsmall

AC servo motor - 110A6ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / compact / small
AC servo motor - 110A6ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / compact / small
AC servo motor - 110A6ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / compact / small - image - 2
AC servo motor - 110A6ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / compact / small - image - 3
AC servo motor - 110A6ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / compact / small - image - 4
AC servo motor - 110A6ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / compact / small - image - 5
AC servo motor - 110A6ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / compact / small - image - 6
Add to favorites
Compare this product

Characteristics

Type
AC
Voltage
220 V
Configuration
compact, small
Protection class
IP65
Number of poles
2-pole
Applications
for robotics, for machine tools, packaging machine
Other characteristics
precision, motion control
Power

0.88 kW, 1 kW, 1.1 kW, 1.3 kW, 1.6 kW
(1.2 hp, 1.36 hp, 1.5 hp, 1.77 hp, 2.18 hp)

Intensity

4.6 A, 5 A, 5.9 A, 7 A, 8.6 A

Torque

3.2 Nm, 4.2 Nm, 5.4 Nm, 6.4 Nm, 7.5 Nm
(2.360199 ft.lb, 3.097761 ft.lb, 3.982836 ft.lb, 4.720398 ft.lb, 5.531716 ft.lb)

Rotational speed

2,000 rpm, 3,000 rpm
(12,566.3706 rad.min-1, 18,849.5559 rad.min-1)

Description

The Small Electric Servo Motor with Servo Drive is an advanced motor system that provides precise and accurate control of motor speed and position. It is a compact, energy-efficient motor system that is designed for use in a variety of applications. The Small Electric Servo Motor with Servo Drive is designed to operate in a wide range of applications, from industrial automation to robotics. The motor system is highly efficient, providing power while minimizing energy consumption. The motor system includes an advanced servo drive that provides precise control over motor speed and position. The servo drive includes a feedback loop that allows for precise positioning of the motor shaft. The Small Electric Servo Motor with Servo Drive is used in a wide range of applications. It is ideal for use in industrial automation, robotics, and other precision applications where precision control over motor speed and position is required. The motor system can be used in packaging machines, CNC machines, assembly lines, and other systems where precise motion control is required.
