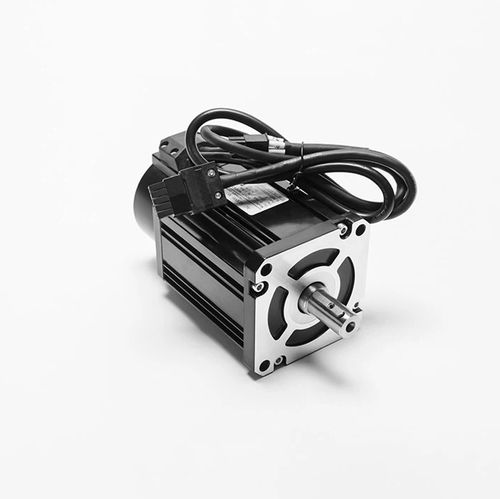

DC servo motor 40AST-M0013048 Vlargesmall
Add to favorites
Compare this product
Characteristics
- Type
- DC
- Voltage
- 48 V
- Configuration
- small, large
- Protection class
- IP64
- Number of poles
- 2-pole
- Applications
- for robotics, for machine tools, for the automotive industry
- Other characteristics
- low voltage
- Power
Max.: 1,000 W
(1.36 hp)Min.: 50 W
(0.07 hp)- Intensity
1.1 A, 2.5 A, 5.7 A, 11 A, 14.5 A
- Torque
Max.: 4 Nm
(2.950249 ft.lb)Min.: 0.16 Nm
(0.11801 ft.lb)- Rotational speed
2,500 rpm, 3,000 rpm
(15,707.9633 rad.min-1, 18,849.5559 rad.min-1)
Description
The industrial dc servo motor is a microspecial motor used as an actuator in an automatic control device. Its function is to convert the angular displacement or angular speed of an electrical signal into a rotating shaft. The industrial dc servo motor also known as an executive motor, is used as an actuator element in the automatic control system to convert the received electrical signal into an angular displacement or angular speed output on the motor shaft.
The industrial dc servo motor has the advantages of good low voltage characteristics, strong torque overload characteristics, large starting torque (rotation blocking characteristics), and small starting current.
Brushless DC moment motor (brushless direct drive motor) is widely used in robotics, automobiles, tools, industrial control, automation, aerospace and other fields.
