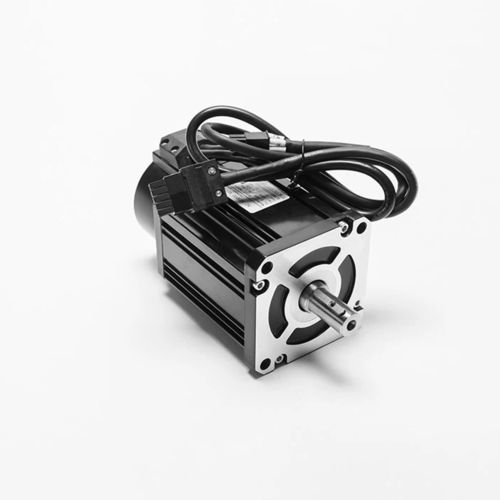

AC servo motor 130A6ST-M0 series
220 VfeatureIP65

AC servo motor - 130A6ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / feature / IP65
AC servo motor - 130A6ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / feature / IP65
AC servo motor - 130A6ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / feature / IP65 - image - 2
AC servo motor - 130A6ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / feature / IP65 - image - 3
AC servo motor - 130A6ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / feature / IP65 - image - 4
AC servo motor - 130A6ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / feature / IP65 - image - 5
AC servo motor - 130A6ST-M0 series - Zhejiang Xinli Electric Technology Co., Ltd. - 220 V / feature / IP65 - image - 6
Add to favorites
Compare this product

Characteristics

Type
AC
Voltage
220 V
Configuration
feature
Protection class
IP65
Number of poles
4-pole
Applications
for robotics, for machine tools
Other characteristics
performance, high-speed, high-precision, precision
Power

Min.: 0.45 kW
(0.61 hp)

Max.: 2.8 kW
(3.81 hp)

Intensity

Min.: 3.7 A

Max.: 15.5 A

Torque

Min.: 2.86 Nm
(2.109428 ft.lb)

Max.: 17.86 Nm
(13.17286 ft.lb)

Rotational speed

1,500 rpm
(9,424.778 rad.min-1)

Diameter

130 mm
(5.12 in)

Description

Servo motor is an engine that controls the operation of the mechanical elements in the servo system. It can control the speed and convert the voltage signal into the torque and rotational speed to drive the control object. ServoMotor lies a powerful 850W motor, capable of delivering precise, high-speed performance. This motor is built to the highest standards of quality and durability, ensuring that it can withstand even the toughest industrial environments. One of the key advantages of the A6 Series 130mm 850W Servo Motor is its precision control. This motor features advanced control algorithms that enable it to respond quickly and accurately to input signals, ensuring that it can deliver smooth, precise motion. This makes the motor ideal for use in applications where accuracy is critical, such as robotics, automation, and CNC machining. Servo Motor is also incredibly versatile, with a wide range of applications. It can be used for everything from small-scale, high-precision manufacturing to large-scale industrial processing. Its advanced control algorithms, coupled with its high-speed performance, make it ideal for use in applications such as pick-and-place robots, conveyor systems, and other high-speed automation applications.
