Mangueira para ar TPR

para ar comprimidoem termoplásticoem aço galvanizado

Product overview

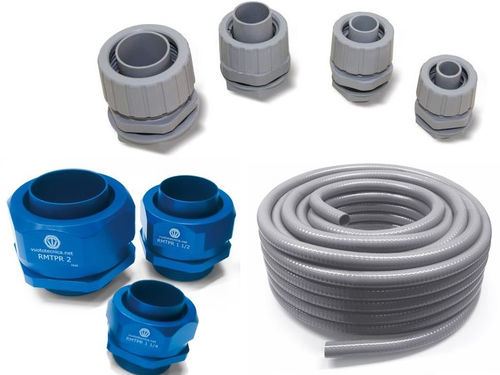

Our TPR flexible hoses have been specially designed for vacuum and are composed of a single piece with plastic insulation and self-extinguishing materials, including the hose reinforcement core. Their excellent flexibility ensures minimal bending radius and they are very light relative to their great resistance to crushing. Their smooth inside reduces harmful load losses to the minimum. The flexible hoses show high resistance to abrasion, to weather agents and to most chemical products. A completely new line of RMTPR fittings for TPR hoses has been created. RTPR fittings from 3/8” to 1” are made of self-extinguishing PVC; RMTPR are in anodised aluminium. The fittings are extremely sturdy and provide a vacuum seal. The use of these fittings eliminates hose clamps and speeds up and secures connections. They are available in various sizes depending on the hose diameter to be connected. Our hoses can be managed in mobile laying/cable chains provided the hose bending radius specifications are respected.

Product codes

• TPR3/8
• TPR1/2
• TPR3/4
• TPR1
• TPR11/4
• TPR11/2
• TPR2
• TPR3
• RTPR3/8
• RTPR1/2
• RTPR3/4
• RTPR1
• RMTPR11/4
• RMTPR11/2
• RMTPR2
• RMTPR3

Applications and benefits
Designed for vacuum use; minimal bending radius and low weight; reduced internal friction losses; high resistance to abrasion, weather and many chemicals; fittings ensure secure vacuum seal and faster assembly; suitable for mobile installation in cable chains when respecting bending radius.

Caractéristiques / spécifications techniques

• Hose type: TPR flexible hoses, single-piece construction with plastic insulation and integrated reinforcement core.
• Materials: self-extinguishing materials for hoses; RTPR fittings in self-extinguishing PVC; RMTPR fittings in anodised aluminium.
• Design features: smooth internal surface to minimize pressure losses; excellent flexibility; high crush resistance; good abrasion and chemical resistance.
• Fittings: RMTPR/RTPR series designed for secure vacuum sealing and to eliminate hose clamps; available in various sizes.
• Size range/examples: fittings and hoses available from 3/8" up to 3" in listed product codes (see product codes list).
• Installation: suitable for use in mobile laying/cable chains if specified bending radius is respected.
