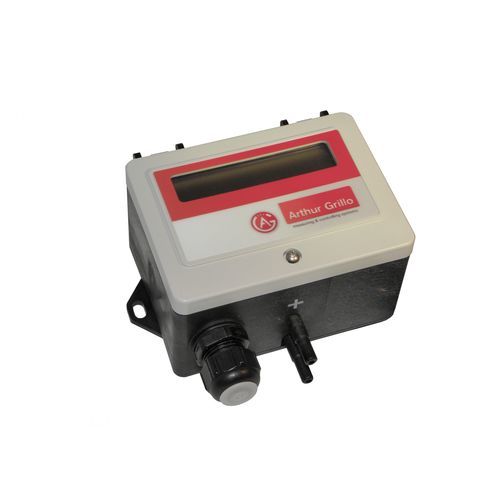

Pressure sensor with selectable measurement range DS200 series

differentialmembraneanalog

Damping of the output signal adjustable via DIP switch Software menu for parameterization: Switchable measuring variables (differential pressure or volume flow) Selectable units (metric or imperial) 4 calibrated measuring ranges selectable via DIP-switch Characteristic adjustment: Linear / radiated Measuring mode with adjustable limit value Alarm delay time (switching delay) 1 sec. to 15 minutes adjustable Switching and contact logic for 4 different states The DS200 differential pressure sensor is used to measure small differential pressures in ventilation and air conditioning systems. In combination with an effective pressure transducer (for example, a venturi nozzle, a venturi tube, a measuring diaphragm), suitable for the calculation of the volumetric flow. Known fields of application are: Ventilation systems, room pressure monitoring, filter monitoring process, environmental, clean room technology, fan technology, pump technology, suction technology, pressure switch. All our differential pressure transducers of the DS series have our optimized mechanical measuring system MENSIO. The MENSIO has been steadily developed over many years and has always proved itself against all adversities. It is particularly characterized by its precision, longevity and insensitivity to external influences. Description for measuring draught, pressure or differential pressure, with 4 calibrated ranges which can be adjusted via the software menu. adjusted to: please inform us in case of order! Output: 0/2...10 V or 0/4...20 mA please inform us in case of order! Supply voltage: 24 Vac or 15...30 Vdc Dimensions: 95 x 70 x 54 mm
