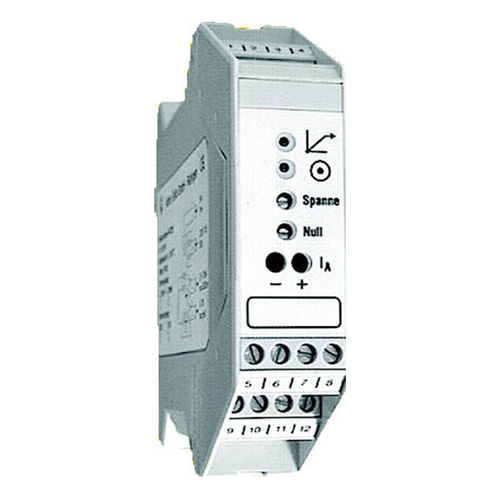

Isolation amplifier TR225

signalsynchronoustransducer

• Isolating amplifier for implementation on standard signals • Galvanic isolation between input, output and power supply • About 18 Vdc unregulated supply voltage, max. 25 mA • Supply voltage 230 Vac/115 Vac • Plastic housing for mounting on a 35 mm standard mounting DIN-rail according to EN 50022 Serves for physically isolation and synchronous amplification or transducing of electrical standard signals. Incorporated supply voltage for supply of a two-wire measuring transmitter. Output signals are both a voltage 0…10 V and a current signal 0/4…20 mA. Both output signals are related to their common negative pole. TECHNICAL SPECIFICATIONS: Supply voltage: Approx. 18 Vdc, unstabilized, max. 25 mA Voltage output: 0 … 10 V, short circuit proof, max. 5 mA Electrical isolation: Between input-output mains 230 Vac, test voltage 4 kV, 50 Hz ACCURACY / ERROR LIMIT: Tolerance: ± 0,2 % Temperature drift: ± 0,2 % / 10 K Description galv. seperation between in/out/supply. Supply unit for two-wire-transmitter. Input adjusted to: ? Output: 0...10 V and 0/4...20 mA ? Supply: 230 Vac/115 Vac Case: Polyamide grey, for mountin
