Duct temperature probe KF1P
Pt100Pt1000for gas

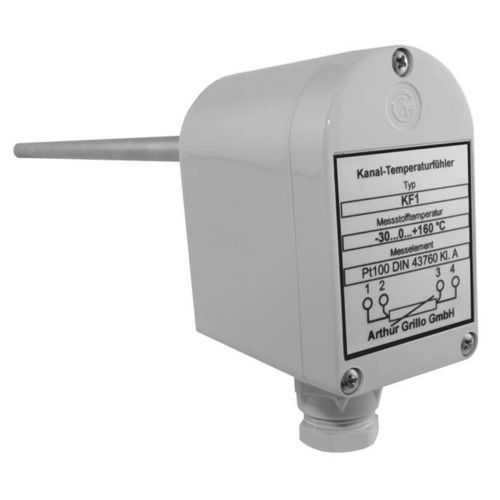

Duct temperature probe - KF1P - Arthur Grillo GmbH - Pt100 / Pt1000 / for gas
Duct temperature probe - KF1P - Arthur Grillo GmbH - Pt100 / Pt1000 / for gas
Duct temperature probe - KF1P - Arthur Grillo GmbH - Pt100 / Pt1000 / for gas - image - 2
Add to favorites
Compare this product
Go to the Arthur Grillo GmbH website for more information

Characteristics

Technology
Pt100, Pt1000
Mounting
duct
Applications
for gas, for the petrochemical industry, for storage tanks, room, for pipelines, outdoor, for heat meters, air duct
Temperature

Min.: 0 °C
(32 °F)

Max.: 160 °C
(320 °F)

Probe diameter

9 mm
(0.3543 in)

Description

Resistance thermometer for temperature measurement up to max. 160 °C. A measuring resistor Pt100 according to DIN EN 60751 is used as measuring element. Field of application: Heating, air-conditioning and ventilation technology, in machine, plant, tank, pipeline and apparatus construction as well as in the chemical and petrochemical industries. TECHNICAL SPECIFICATIONS: Operating mode: Measuring mode Measuring medium: Temperature Measuring unit: °C ACCURACY / ERROR LIMIT: Long-term stability: Max. R0-Drift 0,05 % / year PHYSICALLY: Protective tube: X10CrNiMoTi 1810, 9 mm ø, material-no. 1.4571; V4A Description Protection tube: Stailess steel 1.4571. Nominal length 250 mm,
