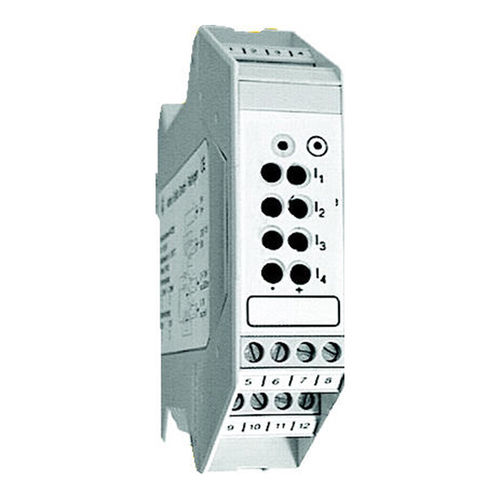

DIN rail power supply SP225-2

AC/DCregulatedwith short-circuit protection

• Multiple power supply electronically up to four two-wire transmitters • Isolation of each circuit with each other protected against short circuits • Plastic housing for mounting on a 35 mm DIN-rail according to EN 50022 Serves for feeding of two-wire transmitter with direct voltage by output signal of 4…20 mA. The single circuits are physically seperated to each other and are electronic fused to short circuit. TECHNICAL SPECIFICATIONS: Ripple: About 0.5 Vpp at 20 mA PHYSICALLY: Display: Operating indicator green Casing: Polyamide gray, for mounting on a 35 mm standard profile rail according to EN 50022 Dimensions: 22.5 x 99 x 110 mm (WxHxD) Protection class: IP 20 according to EN 60529 Connections: Screw terminals up to 2.5 mm² Ambient temperature: -10 to 50 ° C Rel. Moisture: 0 … 85%, no condensation Weight: Approx. 160 g
