Diaphragm element
Smallest measuring range 0…100 Pa
Wide 270° analog display – scale length ca. 250 mm
Scaling in m3/h possible

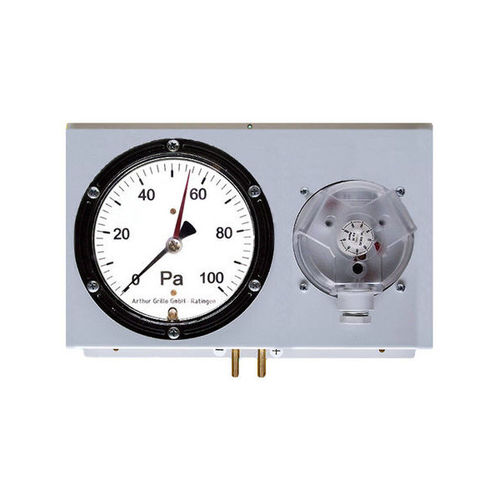

Manometer with a diaphragm element for indication of pressure, under pressure or differential pressure of non aggressive gas. The Manometer is delivered with accessories for mounting in front or behind a panel or wall installation. Optional are:
• Two limit value pointers red or green
• Manometer with analog output signal
• Combination of indicator and pressure switch fitted in a wall mounting bracket
TECHNICAL SPECIFICATIONS:
Operating mode: Measuring mode
Measuring medium: Air or non-aggressive gases
Measuring principle: Electromechanical diaphragm measuring system
Measuring unit: Pa
Smallest measuring range: 0…100 Pa (1 mbar)
Measuring range selection: factory preset
Characteristic: linear or square root
Switching function: yes
Tolerance on upper and lower Lower switching point: ± 15 %
Switching capacity: max. 1.5 A / 250 Vac
Setpoint setting: Poti mit Skala
