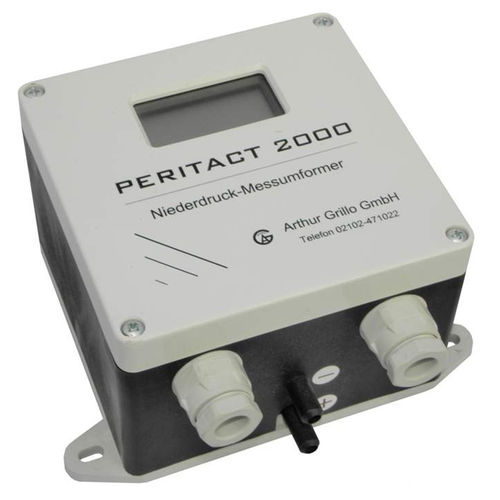

Low pressure pressure transmitter PERITACT 2000

differentialmembrane4-20 mA

Electromechanical diaphragm measuring system Diaphragm element Digital display 3 1/2 digits Analog output 0…10 V and 4…20 mA Manometer with diaphragm element for indication of pressure, under pressure or differential pressure of non aggressive gas. TECHNICAL SPECIFICATIONS: Operating mode: Measuring mode Measuring medium: Air or non-aggressive gases Measuring principle: Electromechanical diaphragm measuring system Measuring unit: Pa Measuring range selection: factory preset Damping: adjustable in 3 steps Characteristic: linear or square root Control characteristic: PI – algorithm Setpoint settings: 2 Setpoint pointer adjustable over the full scale range, per limit value 1 Output relay with potential-free change-over contact Contact load: 250 Vac, 6A, induction-free load Description for pressure, underpressure and differential pressure selected measuring range: customer specification required! Output: 0...10 V and 0/4...20 mA customer specification required! Supply voltage: 230 Vac, 24 Vac or 24 Vdc Dimensions: 120 x 122 x 100 mm, wall mounting Accessories: operation manual
