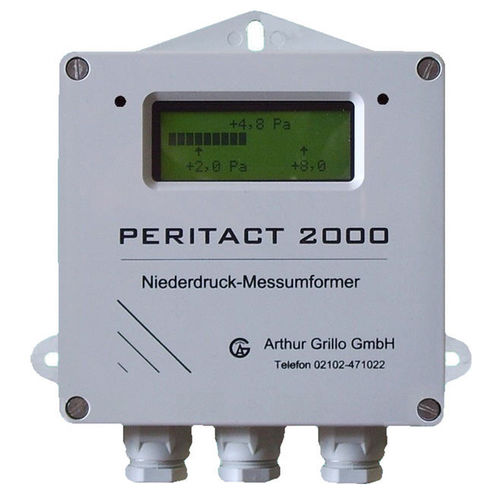

Differential pressure transmitter PERITACT 2000-K10

membrane4-20 mAdigital

Dynamic micro flow sensor Characteristic linear or square-rooted LCD-Display with 4 lines of 20 characters Contact function min. or max. Manometer with diaphragm element for indication of pressure, under pressure or differential pressure of non aggressive gas. Thanks to the measuring principle, the device is irrespective of position and has an extremely high zero-point security with the smallest measuring ranges. Thereby, it is particularly suitable for air flow measurement according to the “Differential pressure” or “dynamic pressure” method with square-root characteristic. No negative pressure measurement possible. TECHNICAL SPECIFICATIONS: Operating mode: Measuring mode with limit contacts Measuring medium: Air or non-aggressive gases Measuring principle: Electromechanical diaphragm measuring system Measuring unit: Pa or m³/h Measuring range selection: factory preset Characteristics: linear or square rooted Damping: selectable 0, 1, 2, 4, 8, 16, 32 s Switching function: min. or max. for each contact Adjustable switching ranges: 0 … 100% measuring range Switching outputs: 2 potential-free change-over contacts Switching delay: adjustable 0 … 20 s Description for draught, pressure, differential pressure or flow metering adjusted span: please specifiy in case of order! display in Pa, characteristic: linear contact load: 250 Vac, 8 A supply voltage: 230 Vac, 24 Vac or 24 Vdc please specify in case of order! case: 120 x 122 x 85 mm wall mounting Accessories: operation manual
