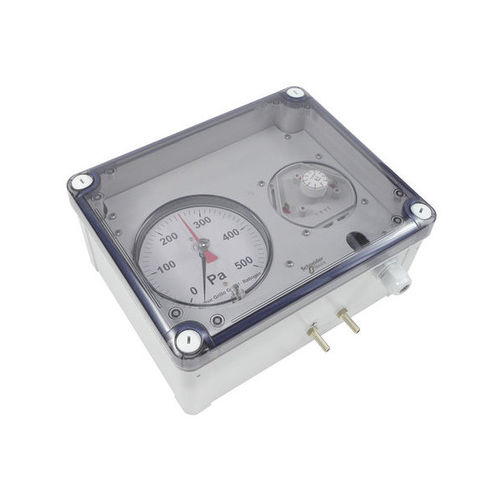

Differential pressure indicator DA2000-K-S series

dialplasticdiaphragm

Differential pressure manometer in a protective housing Diaphragm element Wide 270° analog display – scale length ca. 250 mm No supply voltage needed Scaling in m3/h possible Combination with pressure switch available (1.5 A / 250 Vac) Manometer with diaphragm element for indication of pressure, under pressure or differential pressure of non aggressive gas. The Manometer is delivered with accessories for mounting in front or behind a panel or wall installation. Optional are: * Two limit value pointers red or green * Manometer with analog output signal * Combination of indicator and pressure switch fitted in a wall mounting bracket TECHNICAL SPECIFICATIONS: Operating mode: Measuring mode Measuring medium: Air or non-aggressive gases Measuring principle: Electromechanical diaphragm measuring system Measuring unit: Pa Measuring range selection: factory preset Characteristic: linear or square root Switching function: yes Tolerance on upper and lower Lower switching point: ± 15 % Switching capacity: max. 1.5 A / 250 Vac Setpoint setting: Poti mit Skala for tensile, pressure, differential pressure measurement. Combination of analog indicator and pressure switch in the protective housing set measuring range: 0 ... x00 Pa (as specified by the customer!) Installation in protective housing IP66, ABS plastic, 240 x 194 x 110 mm (W x H x D) Accessories: Operating instructions!
