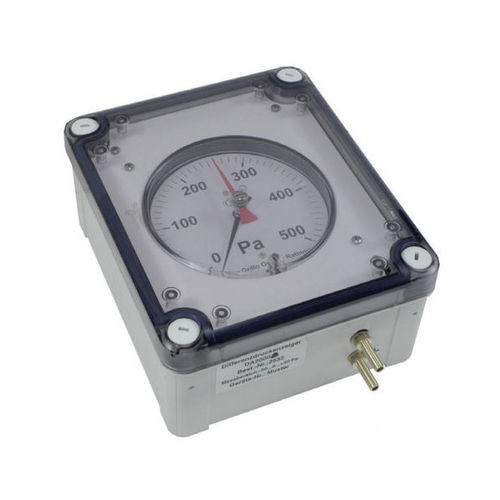

Differential pressure gauge DA2000-S series

digitalpanel-mountwall-mounted

Wide 270° analog display – scale length ca. 250 mm No supply voltage needed Scaling in m3/h possible Manometer with diaphragm element for indication of pressure, under pressure or differential pressure of non aggressive gas. The Manometer is delivered with accessories for mounting in front or behind a panel or wall installation. Optional are: * Two limit value pointers red or green * Manometer with analog output signal * Combination of indicator and pressure switch fitted in a wall mounting bracket TECHNICAL SPECIFICATIONS: Operating mode: Measuring mode Measuring medium: Air or non-aggressive gases Measuring principle: Electromechanical diaphragm measuring system Measuring unit: Pa Measuring range selection: factory preset PERFORMANCE: Overpressure protection: min. up to 10-times the measuring range Zero point calibration: scale fine adjustment via screw Reaction time: direct Description for tension, pressure, differential pressure measurement. Set measuring range: 0 ... x00 Pa (according to customer specifications!) Accessories: instruction manual
