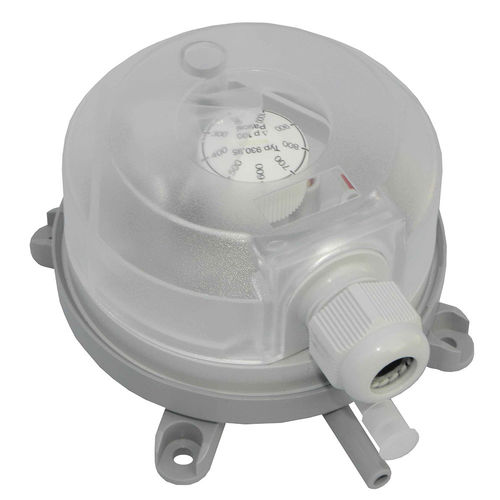

Diaphragm pressure switch DS

differentialwall-mountedfor air

• Diaphragm element • Smallest setting range 20…300 Pa • Adjuster with scale benchmark • With a change-over-contact Adjustable differential pressure switch for control of non-aggressive gases. Control button with guide value scale. TECHNICAL SPECIFICATIONS: Adjustable range: 20 to 300 Pa, switching differential 10 Pa 30 to 400 Pa, switching differential 15 Pa 50 to 500 Pa, switching differential 20 Pa 200 to 1000 Pa, switching differential 100 Pa Tolerance on upper and lowest switching pressure: ± 15 % for vertical mounting Electrical Connections: AMP-flat plug 6,3 mm x 0.8 mm Contact type: changer Housing: polycarbonate housing with transparent cover grey similar RAL 7035 for wall mounting; ø 85 mm, 58 mm deep Pressure Connections: hose liners 6 mm ø, 16 mm length Cable entry: M 16 x1.5 Weight: approx. 160 g
