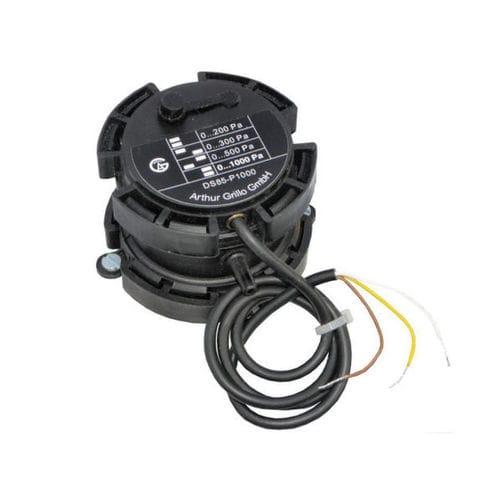

Pressure sensor with selectable measurement range DS85-P series

differentialmembrane4-20 mA

Diaphragm element Analogue output 0…10 V or 4…20 mA 4 calibrated measuring ranges selectable via DIP-Switch Compact size of about ca. 70 mm Sensor for measuring small differential pressure of non-aggressive gases, preferably of air. Ranges from 50 Pa up to 6000 Pa are covered by three units, up to four calibrated ranges are selectable by DIP-switch in each unit. TECHNICAL SPECIFICATIONS: Operating mode: Measuring mode Measuring medium: Air or non-aggressive gases Measuring principle: Electromechanical diaphragm measuring system Measuring unit: Pa Measuring range selection: yes via 2-pole DIP switch Characteristic:linear Description for measuring draught, pressure or differential pressure. Supply voltage: 15 ... 30 Vdc or 24 Vac ±15 % Case: plasstic for wall mounting, diameter 70 mm, depth 50 mm.
