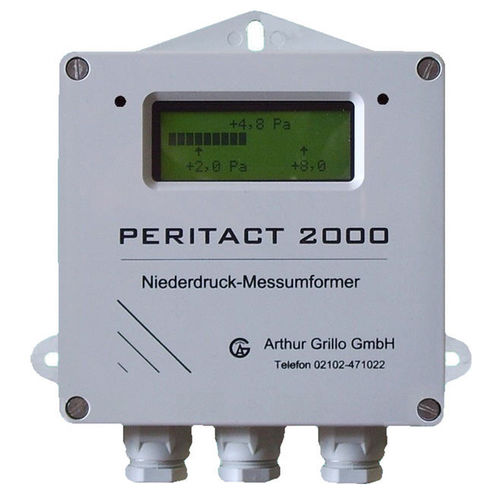

Differential pressure transmitter PERITACT 2000-K

membrane4-20 mA0-10 V

Diaphragm element Backlit LCD display with 4 lines of 20 characters 2 switching output signals potential free Switching function min. or max. Manometer with diaphragm element for indication of pressure, under pressure or differential pressure of non aggressive gas. Also for air flow measurement according to the Differential Pressure or dynamic pressure method with square-root characteristic. TECHNICAL SPECIFICATIONS: Operating mode: Measuring mode with limit contacts Measuring medium: Air or non-aggressive gases Measuring principle: Electromechanical diaphragm measuring system Measuring unit: Pa Measuring range selection: factory preset Damping: pressure – linear, volume – square rooted Switching function: min. or max. for each contact Switching outputs: 2 potential-free change-over contacts Switching delay: adjustable 0 … 20 s Contact load: 250 Vac, 6A, induction-free load Description for pressure, underpressure or differential pressure. With illuminated LCD display, 4 lines. set measuring range: Characteristic: linear or square rooted 2 changeover contacts 250 Vac, 8 A Supply voltage: 230 Vac, 24Vac or 24Vdc Housing: 120 x 122 x 85 mm wall construction Accessories: Operating instructions.
