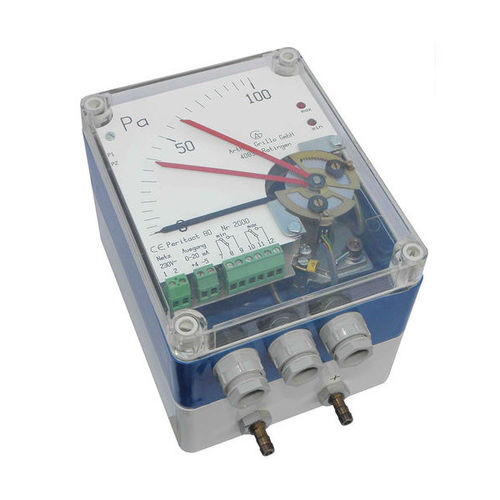

Differential pressure gauge PERITACT 80

dialpanel-mountwall-mounted

Large analog scale Min. and max. contact possible Also two-wire transmitter MZP80 available Manometer with diaphragm element for indication of pressure, under pressure or differential pressure of non aggressive gas. For flow measurements, by the differential pressure method, versions are available with a square graduation. TECHNICAL SPECIFICATIONS: Operating mode: Measuring mode Measuring medium: Air or non-aggressive gases Measuring principle: Electromechanical diaphragm measuring system Measuring unit: Pa Setpoint settings: 2 Setpoint pointer adjustable over the full scale range, per limit value 1 Output relay Contact load: with potential-free change-over contact 250 Vac, 6A, induction-free load Description for tensile, compression, differential pressure measurement. 1 max- and 1 min-contact selected measuring range: customer specification required! Line voltage: 230 Vac or 24 Vac customer specification required! Wall-mounted unit with diaphragm element, degree of protection IP65, Dimensions: 155 x 170 x 135mm (WxHxD) Accessories: Operating Instructions.
