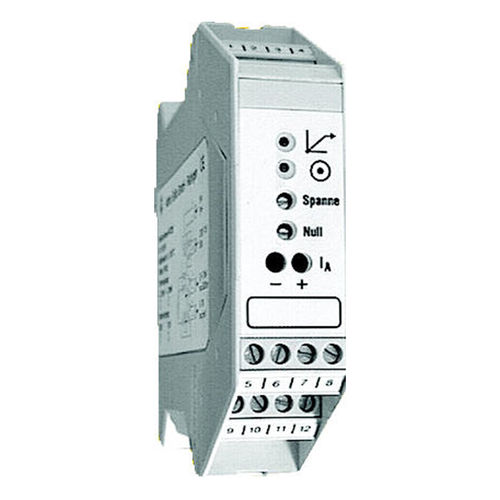

Universal signal converter ST225

transmitterDIN rail

SUPPY UNIT and SUPPLY CONVERTER • Converter to adapt various standard signals • Supply voltage for two-wire transmitter • Plastic housing for mounting on 35 mm standard mounting rail according to EN50022 For conversion of standard signals. Incorporated supply voltage for supply of a two-wire measuring transmitter. Output signals are both a voltage 0…10 V and a current signal 0/4…20 mA. Both output signals are related to their common negative pole. TECHNICAL SPECIFICATIONS: Operating mode: Measurement mode Entrance: 0 / 0.2 … 1V, 0/2 … 10V, 0/4 … 20mA Supply voltage: Approx. 18 Vdc, unstabilized, max. 25 mA Settings: Measuring range adjustable via trimmer ACCURACY / ERROR LIMIT: Tolerance: ± 0,2 % Temperature drift: ± 0,2 % / 10 K Description for conversion of standard signals. Incorporated supply voltage for a two-wire transformer. adjusted to: please state ? Supply: 230 Vac/115 Vac, 24 Vac or 24 Vdc ? Case: Polyamide grey, for mounting on 35 mm standard profile DIN-rail Dimensions: 22,5 x 99 x 110 mm
