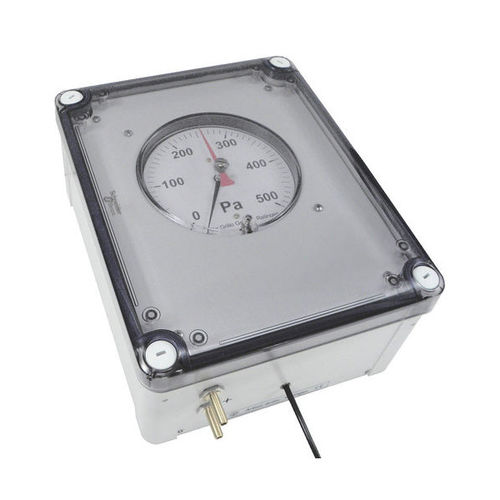

Differential pressure gauge DA2000-A-S series

analogpanel-mountwall-mounted

Differential pressure manometer in a protective housing Diaphragm element Wide 270° analog display – scale length ca. 250 mm No supply voltage needed Scaling in m3/h possible Analog output 0…10 V or 4…20 mA possible Manometer with diaphragm element for indication of pressure, under pressure or differential pressure of non aggressive gas. The Manometer is delivered with accessories for mounting in front or behind a panel or wall installation. Optional are: * Two limit value pointers red or green * Manometer with analog output signal * Combination of indicator and pressure switch fitted in a wall mounting bracket TECHNICAL SPECIFICATIONS: Operating mode: Measuring mode Measuring medium: Air or non-aggressive gases Measuring principle: Electromechanical diaphragm measuring system Measuring unit: Pa Measuring range selection: factory preset Characteristics: : linear or sqaure root Description for tensile, pressure, differential pressure measurement. Combination of analog indicator in the protective housing set measuring range: 0 ... xxx Pa Analog output: 0 ... 10 V three-wire technology or 4 ... 20 mA two-wire technology Installation in protective housing IP66, ABS plastic, 194 x 164 x 87 mm (W x H x D) Accessories: Operating instructions
