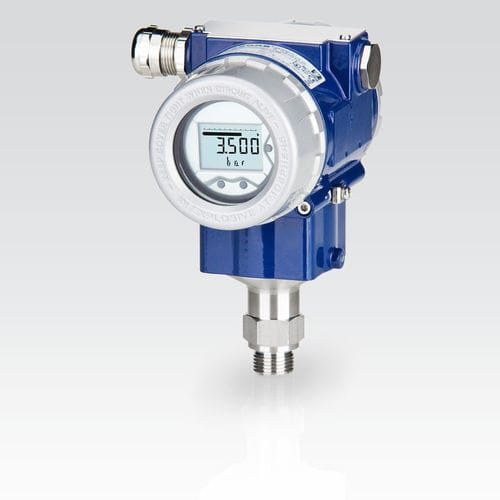

Relative pressure transmitter XMP i
absolutevacuummembrane

relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative, absolute, vacuum
Technology
membrane, piezoresistive
Output
4-20 mA, HART
Mounting
threaded, flush diaphragm, flange
Fluid
for gas, for liquids
Material
stainless steel
Protection level
rugged, ATEX, EMC, rugged, SIL 2, SIL, IP67
Applications
process, for the food industry, for the petrochemical industry, for water treatment, for pharmaceutical applications, for refrigeration circuits
Other characteristics
temperature-compensated, precision, CE, two-wire, smart, oil-filled, low pressure, with diaphragm seal, with aluminum housing, with integrated amplifier, high-overpressure, custom, fast response time, programmable, with selectable measurement range, silicone oil-filled, RoHS, digitally compensated, high-temperature, multifunction, with amplified output, with display
Pressure range

Max.: 600 bar
(8,702.26 psi)

Min.: 0 bar
(0 psi)

Description

The process pressure transmitter XMP i has been especially designed for the process industry and measures vacuum, gauge and absolute pressure ranges of gases, steam, fluids and dust up to 600 bar. Different process connections such as threads and flanges with an internal or flush welded diaphragm are available and can be combined with a cooling element for media temperatures up to 300°C. Features: - nominal pressure: 0 ... 400 mbar up to 0 ... 600 bar - accuracy: 0.1 % FSO - turn-down 1:10 - two chamber aluminium die cast case or stainless field housing - internal or flush welded diaphragm - HART®-communication - explosion protection: intrinsic safety (ia) Optional Features: - explosion protection flameproof equipment (d) - SIL2 -version according to IEC 61508 / IEC 61511 - integrated display and operating module - special materials as Hastelloy® and Tantalum
