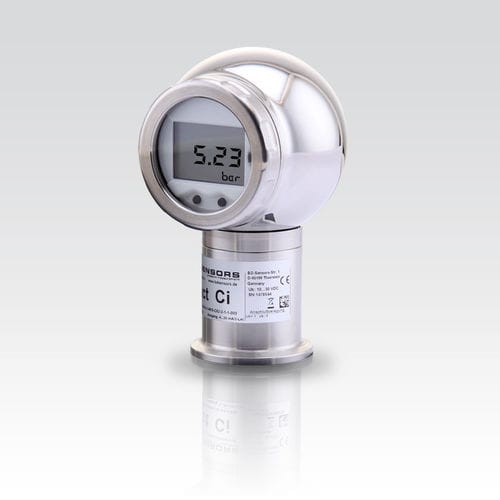

Relative pressure sensor x|act ci
ceramic4-20 mAHART

relative pressure sensor
relative pressure sensor
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Technology
ceramic
Output
4-20 mA, HART
Mounting
threaded, flush diaphragm, flange
Fluid
for gas, for liquids
Material
stainless steel
Protection level
rugged, ATEX, EMC, corrosion-resistant, IP67
Other characteristics
with amplified output, precision, CE, RoHS, with LCD display, custom, temperature-compensated, programmable, low pressure, multifunction, with selectable measurement range, two-wire, with digital display, smart, high-overpressure, digitally compensated
Pressure range

Max.: 20 bar
(290.08 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 80 °C
(176 °F)

Min.: -30 °C
(-22 °F)

Description

The precise pressure transmitter x|act ci measures the pressure of gases, steam and fluids. The special-developed capacitive ceramic sensor for this transmitter, which can optionally be delivered in pure ceramic, has a high overpressure capability and excellent media stability. Several process connections e.g. inch thread or hygienic versions like Varivent, dairy pipe or Clamp are available. The robust stainless steel globe housing has a high ingress protection IP 67 and all characteristics for a residue-free and antibacterial cleaning. Features: - nominal pressure: 0 .. 160 mbar up to 0 .. 20 bar - accuracy: 0.1 % FSO - turn-down 1:5 - hygienic version - flush mounted, capacitive ceramic sensor - several process connections (inch thread, Clamp, ...) - with integrated display and operating module - diaphragm Al2O3 (99.9 %) Optional: - IS-Version Ex ia = intrinsically safe for gases and dusts - HART®-communication
