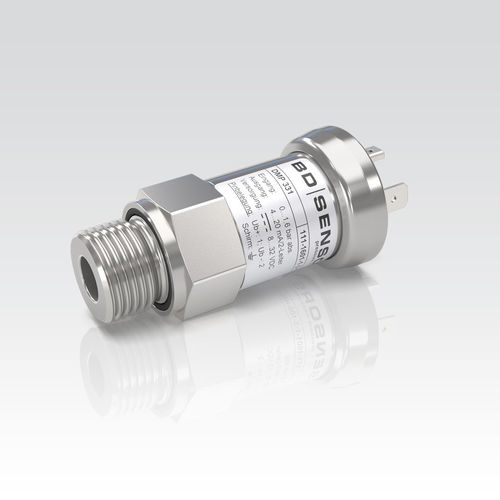

Relative pressure transmitter DMP 331
absolutevacuumsilicon

relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative, absolute, vacuum
Technology
silicon, piezoresistive
Output
4-20 mA, ratiometric
Mounting
threaded, O-ring
Fluid
for gas, for liquids
Material
stainless steel
Protection level
ATEX, EMC, SIL 2, SIL, IP67, IP65, IP68, IP69
Applications
process, for OEM, for HVAC systems, for water treatment
Other characteristics
compact, CE, temperature-compensated, two-wire, with integrated amplifier, low pressure, custom, fast response time, RoHS, oil-filled, silicone oil-filled, with amplified output
Pressure range

Max.: 60 bar
(870.23 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Description

The pressure transmitter DMP 331 can be used in all industrial areas when the medium is compatible with stainless steel 1.4404 (316 L) or 1.4435 (316 L). Additional are different elastomer seals as well as a helium tested welded version available. The modulare concept of the device allows to combine different stainless steel sensors and electronic modules with a variety of electrical and mechanical versions.Thus a diversity of variations is created, meeting almost all requirements in industrial applications. Features: - nominal pressure: 0 ... 100 mbar up to 0 ... 60 bar - accuracy: 0.35 % (opt. 0.25 % / 0,1%) FSO - excellent thermal behavior - excellent accuracy - flush pressure port G 1/2" from 100 mbar Optional Features: - IS-version Ex ia = intrinsically safe for gases and dusts - SIL 2 according to IEC 61508 / IEC 61511 - pressure sensor welded - customer specific versions
