Relative pressure transmitter XMP civacuumceramic4-20 mA
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative, vacuum
- Technology
- ceramic
- Output
- 4-20 mA, HART
- Mounting
- threaded, flange
- Fluid
- for gas, for liquids
- Material
- stainless steel
- Protection level
- rugged, ATEX, EMC, corrosion-resistant, IP67
- Applications
- process, for HVAC systems, for the petrochemical industry, for building automation, for water treatment, for refrigeration circuits
- Other characteristics
- two-wire, precision, CE, with amplified output, temperature-compensated, digitally compensated, smart, with selectable measurement range, low pressure, with integrated amplifier, custom-made, fast response time, programmable, high-overpressure, RoHS, with display, with diaphragm seal, with aluminum housing
- Pressure range
Max.: 20 bar
(290.08 psi)Min.: 0 bar
(0 psi)- Process temperature
Max.: 125 °C
(257 °F)Min.: -25 °C
(-13 °F)
Description

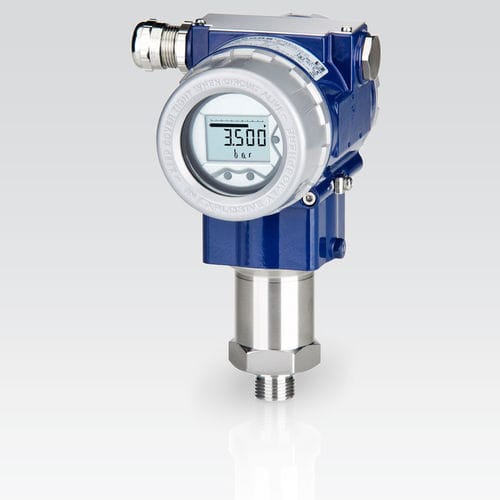

The process pressure transmitter XMP ci measures the pressure of gases, steam, dust and fluids. The special-developed capacitive ceramic sensor for this transmitter has a high overpressure capability and excellent media stability.
Several process connections e.g. thread or flange are available. The transmitter is as a standard equipped with HART®-communication, the customer can choose between a two chamber aluminum die cast case or a stainless field housing.
Features:
- accuracy: 0.1 % FSO
- turn-down 1:5
- two chamber aluminium die cast case or stainless field housing
- internal or flush mounted capacitive ceramic sensor
- HART®-communication
- explosion protection: intrinsic safety (ia)
- diaphragm ceramics Al2O3 (99.9 %)
Optional Features:
- explosion protection
flameproof equipment (d)
- with integrated display and operating module
