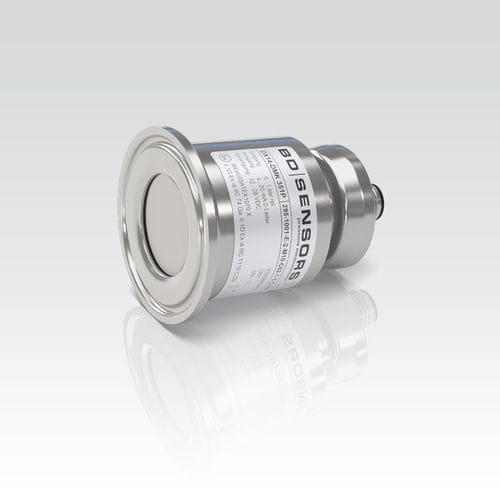

Relative pressure transmitter DMK 351 P
absolutevacuumceramic

relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative, absolute, vacuum
Technology
ceramic, capacitive
Output
4-20 mA
Mounting
threaded, flush diaphragm, flange, immersed
Fluid
for gas, for liquids
Material
stainless steel
Protection level
EMC, ATEX, IP65, IP67
Other characteristics
compact, CE, two-wire, temperature-compensated, custom, programmable, RoHS, with selectable measurement range, multifunction
Pressure range

Max.: 20 bar
(290.08 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Description

The pressure transmitter DMK 351P has been designed for measuring small system pressure in the food industry and chemical industry. The DMK 351P is based on an own-developed capacitive ceramic sensor element. It features high overpressure resistance and high resistance against most of aggressive media. A variety of different process and electrical connections and an intrinsically safe version complete the range of possibilities. Features: - nominal pressure: 0 ... 40 mbar up to 0 ... 20 bar - accuracy: 0,35 % (opt. 0,25 %) FSO - hygienic version - high overpressure capability - several process connections (G1" cone, Clamp, dairy pipe, etc.) (G 1/2, dairy pipe, clamp, etc.) Optional Features: - IS-Version Ex ia = intrinsically for gases and dusts - diaphragm AI2O3 99.9 % - customer specific versions e.g. special pressure ranges
