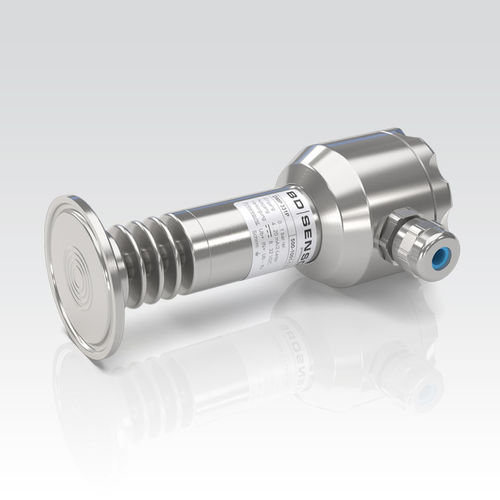

Relative pressure transmitter DMP 331 P
absolutevacuummembrane

relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative, absolute, vacuum
Technology
membrane, piezoresistive
Output
4-20 mA
Mounting
threaded, flush diaphragm, flange
Fluid
for gas, for liquids
Material
stainless steel
Protection level
EMC, ATEX, SIL 2, IP65, IP67, IP68
Other characteristics
CE, two-wire, temperature-compensated, low pressure, custom, programmable, RoHS, high-overpressure, high-temperature, fully-welded, with selectable measurement range, silicone oil-filled, high-sensitivity, oil-filled
Pressure range

Max.: 40 bar
(580.15 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 300 °C
(572 °F)

Min.: -40 °C
(-40 °F)

Description

The pressure transmitter DMP 331P was designed for use in the food and pharmaceutical industry. The compact design with hygienic process connections makes it possible to achieve an outstanding performance in terms of accuracy, temperature behavior and long term stability. The modular construction concept allows a combination of various process connections with different filling fluids and a cooling element. Several electrical connections complete the profile of DMP 331P. Features: - nominal pressure: 0 ... 100 mbar up to 0 ... 40 bar - accuracy:0.35 % (opt. 0.25 %) FSO - hygenic version - diaphragm with low surface roughness - CIP / SIP cleaning up to 150 °C - vacuum resistant Optional Features: - IS-Version Ex ia = intrinsically safe for gases and dusts - SIL 2 according to IEC 61508 / IEC 61511 - cooling element for media temperatures up to 300 °C - diaphragm in Hastelloy® or Tantalum
