relative pressure transmitter / silicon / analog / threaded
DMP 335

Add to MyDirectIndustry favorites
Compare this product
relative pressure transmitter / silicon / analog / threaded relative pressure transmitter / silicon / analog / threaded - DMP 335
{{requestButtons}}

Characteristics

  • Pressure type:

    relative

  • Technology:

    silicon

  • Output signal:

    analog

  • Mounting:

    threaded

  • Other characteristics:

    stainless steel

  • Process temperature:

    Max.: 125 °C (257 °F)

    Min.: -40 °C (-40 °F)

  • Pressure range:

    Max.: 600 bar (8,702.26 psi)

    Min.: 0 bar (0 psi)

Description

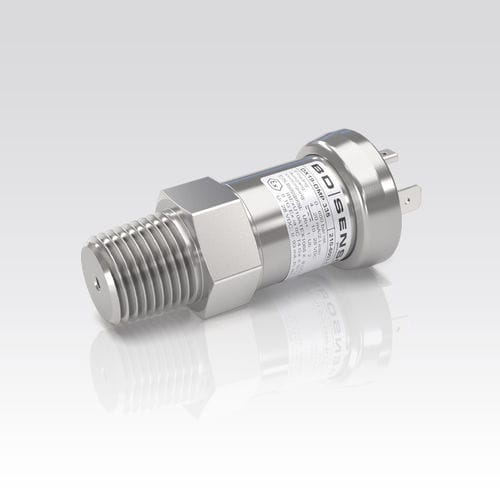

The industrial pressure transmitter DMP 335 is based on a stainless steel welded pressure sensor without fluid.

This characteristic has a special advantage with applications where silicon oil or elastomeric seals cannot be used.

Features:
- nominal pressure: 0 ... 6 bar up to 0 ... 600 bar
- accuracy: 0.5 % FSO
- suitable for oxygen applications
- insensitive to pressure peaks
- high overpressure capability

Optional Features:
- IS-version
Ex ia = intrinsically safe for gases and dusts
- customer specific versions
