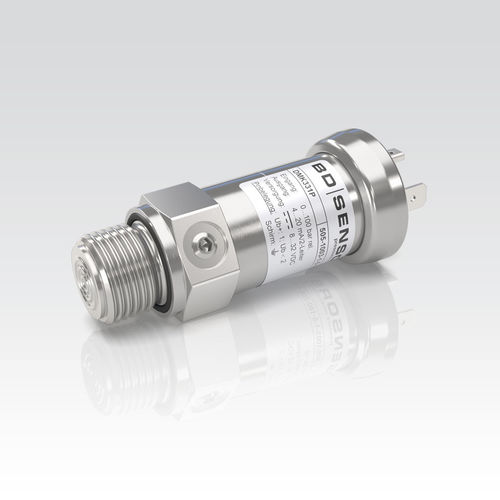

Relative pressure transmitter DMK 331 P
absolutemembranepiezoresistive

Relative pressure transmitter - DMK 331 P - BD|SENSORS GmbH - absolute / membrane / piezoresistive
Relative pressure transmitter - DMK 331 P - BD|SENSORS GmbH - absolute / membrane / piezoresistive
Add to favorites
Compare this product
Go to the BD|SENSORS GmbH website for more information

Characteristics

Pressure type
relative, absolute
Technology
membrane, piezoresistive
Output
4-20 mA
Mounting
threaded, flush diaphragm
Fluid
for gas, for liquids
Material
stainless steel
Protection level
EMC, ATEX, IP65, IP67
Other characteristics
CE, compact, two-wire, temperature-compensated, OEM, low pressure, high-overpressure, custom-made, programmable, RoHS, fully-welded, with selectable measurement range, oil-filled, silicone oil-filled
Pressure range

Max.: 400 bar
(5,801.51 psi)

Min.: 0 bar
(0 psi)

Description

The pressure transmitter DMK 331P is suitable for measuring the pressure of viscous and pasty media, where a totally flush pressure port is required. As on all industrial pressure transmitters made by BD|SENSORS, you may choose between various electrical and mechanical connections also on DMK 331P. Features: - accuracy: 0.5 % FSO - suited for viscous and pasty media Optional Features: - IS-version Ex ia = intrinsically safe for gases and dusts - SIL 2 according to IEC 61508 / IEC 61511 - food compatible oil filling with FDA approval - cooling element for media temperatures up to 300 °C - customer specific versions
