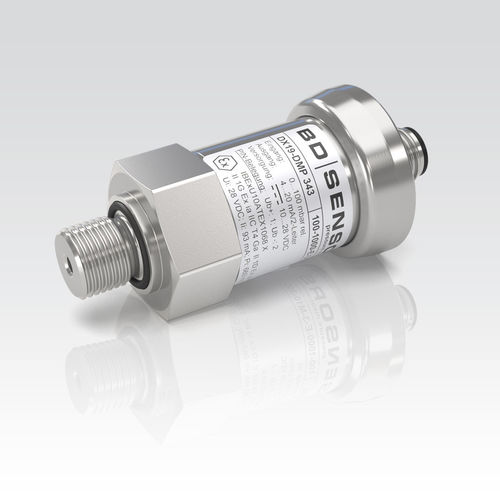

Relative pressure transmitter DMP 343siliconpiezoresistive4-20 mA
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Technology
- silicon, piezoresistive
- Output
- 4-20 mA, ratiometric
- Mounting
- threaded, O-ring
- Material
- stainless steel
- Protection level
- EMC, intrinsically safe, explosion-proof, SIL 2, SIL, IP65, IP67, IP68
- Applications
- for OEM, for building automation
- Other characteristics
- compact, CE, two-wire, temperature-compensated, low pressure, custom-made, fast response time, RoHS, with amplified output, with integrated amplifier
- Pressure range
Max.: 1 bar
(14.5 psi)Min.: 0 bar
(0 psi)- Process temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)
Description
The pressure transmitter DMP 343 has been especially designed for the measurement of very low gauge pressure and for vacuum applications. Permissible media are non-aggressive, dry gases and non-aggressive, low viscos oils.
The DMP 343 features excellent thermal behaviour and outstanding long term stability. A variety of standard output signals as well as mechanical and electrical connections make the DMP 343 covering a wide field of applications.
Features:
- nominal pressure: 0 ... 10 mbar up to 0 ... 1000 mbar
- accuracy: 0.35 % FSO
- small thermal effect
- excellent long term stability
- excellent linearity
Optional Features:
- IS-Version
Ex ia = intrinsically safe for gases and dusts
- different electrical and mechanical connections
- customer specific versions
Catalogs
data sheet DMP 343
5 Pages
