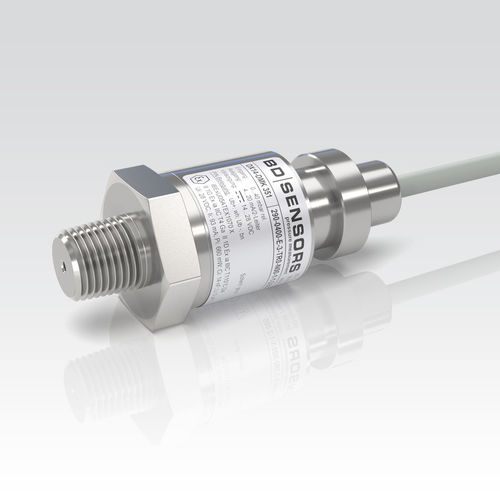

Relative pressure transmitter DMK 351
vacuumceramiccapacitive

relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative, vacuum
Technology
ceramic, capacitive
Output
4-20 mA
Mounting
threaded
Fluid
for gas, for liquids
Material
stainless steel
Protection level
EMC, ATEX, IP67, IP68
Other characteristics
compact, CE, two-wire, temperature-compensated, custom, programmable, RoHS, multifunction, high-overpressure
Pressure range

Min.: 0 bar
(0 psi)

Max.: 20 bar
(290.08 psi)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 125 °C
(257 °F)

Description

The pressure transmitter DMK 351 has been specially designed for applications in plant and machine engineering as well as laboratory techniques and is suitable for measuring small system pressure and filling heights. By using our own-developed capacitive sensor, optionally available as AI2O3 99.9%, the DMK 351 offers a high overpressure resistance and a high temperature and media resistance. The pressure transmitter is available in an intrinsically safe version for a use in explosive environments. Features: - nominal pressure: 0 ... 40 mbar up to 0 ... 20 bar - accuracy: 0.35 % (opt. 0.25 %) FSO - high media resistance Optional Features: - IS-Version (temperature class T4) Ex ia = intrinsically safe for gases and dusts - IS-version (temperature class T6) - diaphragm (99.9 % AI2O3) - customer specific versions
