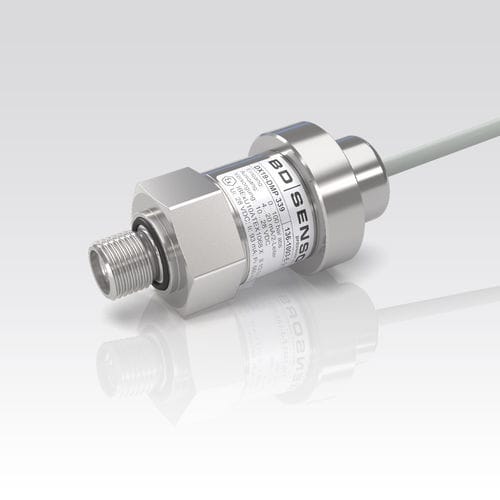

Relative pressure transmitter DMP 339
membraneanalogthreaded

relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Technology
membrane
Output
analog
Mounting
threaded
Material
stainless steel
Pressure range

Max.: 600 bar
(8,702.26 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Description

The DMP 339 industrial pressure transmitter features a G ¼" flush pressure port and was designed for the use in a range of machinery including metering systems. It is ideal for measuring the pressure of viscous and pasty media, as only a small dead space is created. Material accumulation, dripping and stringing in machinery is eliminated. This increases the efficiency and reliability of your machines. The DMP 339 is available with various electrical connections, ensuring thus an excellent adaption to the application conditions. Features: - nominal pressure: 0 ... 60 bar up to 0 ... 600 bar - accuracy: 0.35 % FSO - mechanical connection: G ¼‘‘ flush - suited for viscous and pasty media Optional Features: - IS-Version Ex ia = intrinsically safe for gases and dusts - several kinds of electrical connections - customer specific versions
