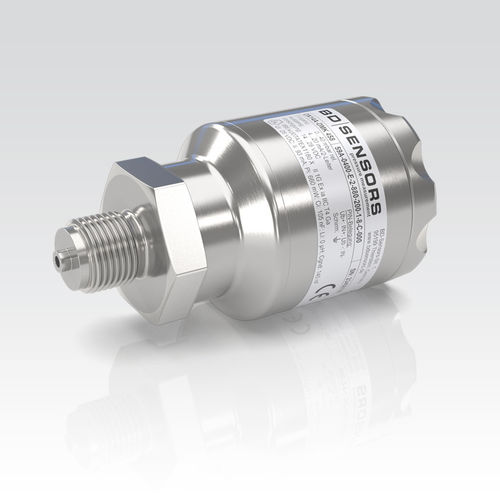

Pressure transmitter for marine applications DMK 458relativeabsolutevacuum
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative, absolute, vacuum
- Technology
- ceramic, capacitive
- Output
- 4-20 mA
- Mounting
- threaded, flush diaphragm, flange
- Fluid
- for gas, for liquids
- Material
- stainless steel
- Protection level
- rugged, EMC, ATEX, IP65, IP67, IP68
- Applications
- for marine applications
- Other characteristics
- temperature-compensated, compact, CE, two-wire, low pressure, custom-made, programmable, RoHS, with selectable measurement range, high-overpressure
- Pressure range
Min.: 0 bar
(0 psi)Max.: 20 bar
(290.08 psi)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 125 °C
(257 °F)
Description
The pressure transmitter DMK 458 has been developed for marine and offshore applications. In addition to thread connections, different flush versions are available, which are especially suitable for pasty, viscous, and polluted media.
Due to the capacitive ceramic sensor developed by BD|SENSORS, which is optionally available in Al2O3 99.9 %, the DMK 458 shows an outstanding accuracy as well as a high overload and temperature resistance.
Features:
- accuracy: 0.25 % (opt. 0.1 %) FSO
- shipping approvals: American Bureau of Shipping (ABS), Bureau Veritas (BV), China Classification Society (CCS), Det Norske Veritas
(DNV), Germanischer Lloyd (GL), Lloyd's Register (LR)
- high overpressure resistance
- excellent accuracy
- accuracy: 0.25 % (opt. 0.1 %) FSO
Optional Features:
- IS-Version
Ex ia = intrinsically safe for gases and dusts
- diaphragm AI2O3 99.9 %
Catalogs
data sheet DMK 458
5 Pages
product catalogue overall
48 Pages
