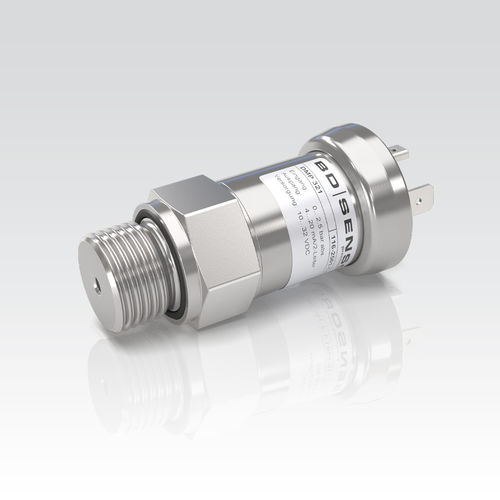

Relative pressure transmitter DMP 321
absolutevacuummembrane

relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative, absolute, vacuum
Technology
membrane, piezoresistive
Output
4-20 mA, ratiometric
Mounting
threaded
Fluid
for gas, for liquids
Material
stainless steel
Protection level
rugged, ATEX, EMC, IP67, IP65, IP68
Applications
for OEM, for HVAC systems, for building automation, for water treatment, for engines
Other characteristics
compact, CE, precision, with integrated amplifier, temperature-compensated, two-wire, low pressure, custom, multifunction, fast response time, programmable, oil-filled, RoHS, with amplified output, with selectable measurement range, silicone oil-filled
Pressure range

Min.: 0 bar
(0 psi)

Max.: 600 bar
(8,702.26 psi)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 125 °C
(257 °F)

Description

The pressure transmitter DMP 321 is the consistent further development of our in many applications approved DMP 331. It shows an improved signal behavior and sets new standards in the industrial class. Its metallic diaphragm made of stainless steel (1.4435 / 316L) offers a good corrosion resistance in many industrial processes. The modular device concept allows to combine different pressure ranges with a variety of electrical and mechanical connections.Thus a diversity of variations is created, meeting almost all requirements in industrial applications. Features: - nominal pressure: 0 ... 100 mbar up to 0 ... 600 bar - accuracy: 0.1 % / 0.25 % FSO - excellent thermal behavior - excellent accuracy - compact design Optional Features: - IS-version Ex ia = intrinsically safe for gases and dusts - pressure sensor welded - customer specific versions
