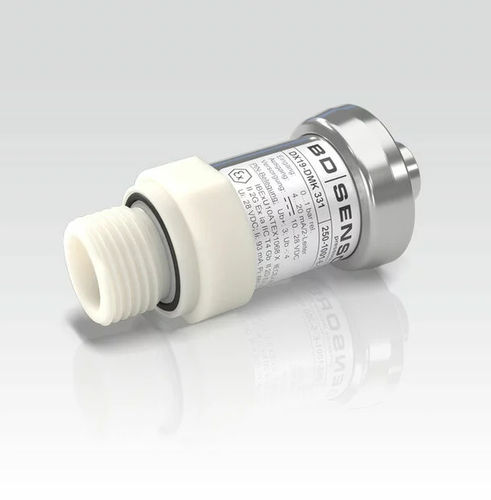

Relative pressure transmitter DMK 331
absolutevacuumceramic

relative pressure transmitter
relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative, absolute, vacuum
Technology
ceramic
Output
4-20 mA
Mounting
threaded, flush diaphragm
Fluid
for gas, for liquids
Material
stainless steel
Protection level
rugged, ATEX, EMC, SIL 2, SIL, IP67, IP65, IP68
Other characteristics
compact, CE, temperature-compensated, two-wire, low pressure, custom, programmable, RoHS, with selectable measurement range, high-overpressure
Pressure range

Max.: 600 bar
(8,702.26 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 125 °C
(257 °F)

Min.: -40 °C
(-40 °F)

Description

The industrial pressure transmitter DMK 331 with ceramic sensor has been especially designed for pasty, polluted or aggressive media and for oxygen applications at low pressure range. As with all industrial pressure transmitters made by BD|SENSORS, you may choose between various electrical and mechanical connections also on DMK 331. Features: - nominal pressure: 0 ... 400 mbar up to 0 ... 600 bar - accuracy: 0.5 % FSO - pressure port G 1/2" flush for pasty and polluted media - pressure port G 1/2" open port PVDF for aggressive media Optional Features: - IS-Version Ex ia = intrinsically safe for gases and dusts - SIL 2 according to IEC 61508 / IEC 61511 - food compatible oil filling with FDA approval - cooling element for media temperatures up to 300 °C - customer specific versions
